| min. medium temperature | -10 °c | ||
| min. ambient temperature | -10 °c | ||
| control pressure min. | 3 bar | ||
| Anschlussart | pipe connection | ||
| pilot valve width | 15 mm | ||
| Dichtprinzip | soft seal | ||
| electrical connection number of poles | 4-pin | ||
| electrical connection type | plug | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 10 bar | ||
| compressed air connection output | g 1/8 | ||

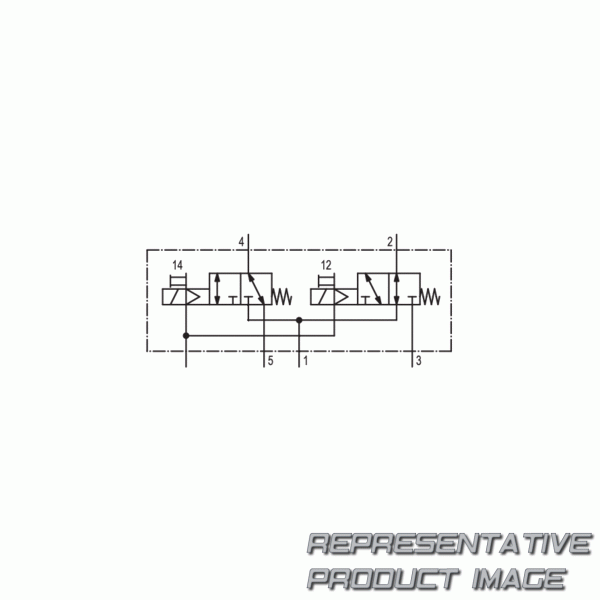

| switching principle | 2x3/2 | ||
| activation | electrically |
| max. ambient temperature | 50 °c | ||
| control pressure max. | 10 bar | ||
| return | with spring return | ||
| valve type | spool valve, positive overlapping | ||
| pilot | external, internal | ||
| actuating control | double solenoid | ||
| electrical connection size | m8 | ||
| Handhilfsbetätigung | without detent | ||
| dc operating voltage | 24 v | ||
| working pressure min. | -0.9 bar | ||
| Ausführung | nc/no | ||
| nominal flow qn | 600 l/min |
