| Standards | iso 21287 | ||
| Hub | 40 mm | ||
| Dämpfung | elastic cushioning | ||
| environmental requirements | industry standard, atex optional | ||
| scraper | standard industrial scraper | ||
| retracting piston force | 720 n | ||
| min. ambient temperature | -20 °c | ||
| working pressure min. | 1 bar | ||
| Anschlüsse | g 1/8 | ||
| impact energy | 0.7 j | ||
| weight +10 mm stroke | 0.06 kg | ||
| Medium | compressed air | ||
| max. medium temperature | 80 °c |
| piston Ø | 40 mm | ||

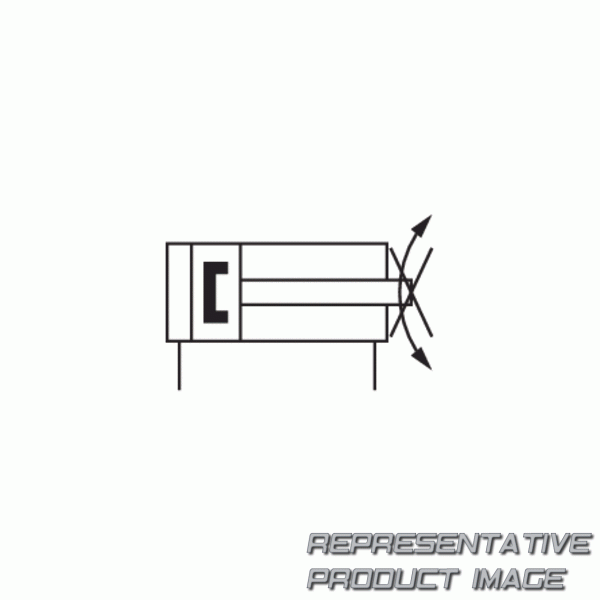

| Funktionsprinzip | double-acting | ||
| magnetic piston | piston with magnet | ||
| piston rod | non-rotating, with front plate | ||
| pressure for determining piston forces | 6,3 bar | ||
| extracting piston force | 792 n | ||
| max. ambient temperature | 80 °c | ||
| working pressure max | 10 bar | ||
| Kolbenstangengewinde | m8 | ||
| weight 0 mm stroke | 0.383 kg | ||
| stroke max. | 300 mm | ||
| min. medium temperature | -20 °c |
