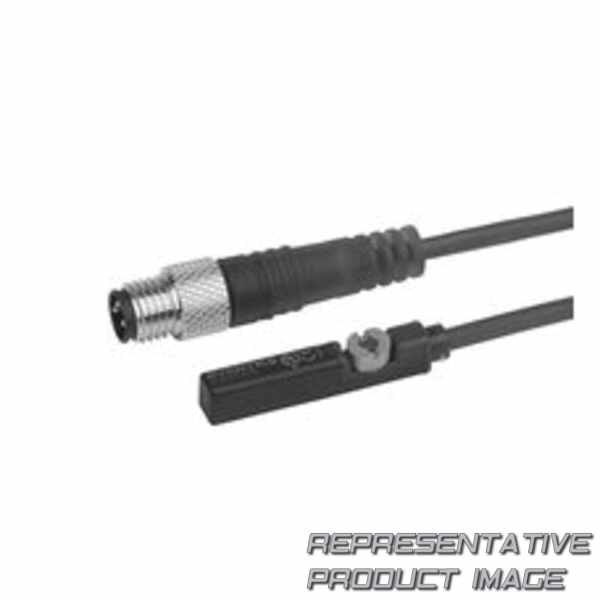

| cable length l | 0.3 m | ||
| Schockfestigkeit | 30 g / 11 ms | ||
| operating voltage dc, max. | 30 v dc | ||
| electrical connection 2, number of poles | 3-pin | ||
| led status display | yellow | ||
| switching point precision | ±0,1 mt | ||
| dc switching current, max. | 0.2 a | ||
| max. ambient temperature | 80 °c | ||
| Schutzklasse | ip65, ip67, ip68 | ||
| Hysterese | ≥ 0,2 mt | ||
| type of contact | pnp | ||
| slot width | 6 mm t-slot | ||
| direct mounting for series | pra |
| Schwingfestigkeit | 10 - 55 hz, 1 mm | ||
| short circuit resistance | short circuit resistant | ||
| operating voltage dc, min. | 10 v dc | ||
| electrical connection 2, type | m8x1, plug | ||
| switching logic | no (make contact) | ||
| Max. Schaltfrequenz | 1000 hz | ||
| voltage drop u at imax | ≤ 2,5 v | ||
| min. ambient temperature | -40 °c | ||
| certificates | rohs, ul (underwriters laboratories), culus | ||
| quiescent current (without load) | < 10 ma | ||
| cable | with cable | ||
| indirect mounting for series | trb, its |
