| Gehäusematerial | polyamide fiber-glass reinforced | ||
| cable length l | 0.3 m | ||
| Schockfestigkeit | 30 g / 11 ms | ||
| operating voltage dc, max. | 30 v dc | ||
| electrical connection 2, number of poles | 3-pin | ||
| led status display | yellow | ||
| switching logic | no (make contact) | ||
| dc switching current, max. | 0.1 a | ||
| max. ambient temperature | 80 °c | ||
| Schutzklasse | ip65, ip67 | ||

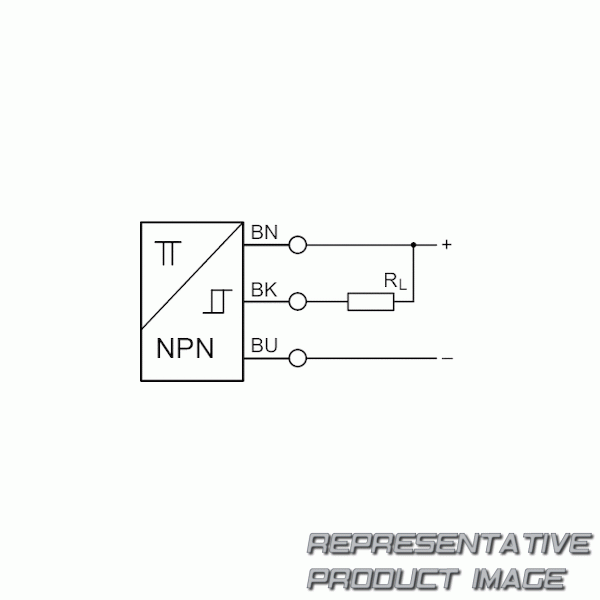

| type of contact | npn | ||
| slot width | 4 mm c-slot | ||
| direct mounting for series | pra, ssi, gsu, rtc, ckp, gsp, msc, msn, rcm, cvi |
| mounting screw | combination: slotted and hexagon socket | ||
| Schwingfestigkeit | 10 - 55 hz, 1 mm | ||
| short circuit resistance | short circuit resistant, protected against polarity reversal | ||
| operating voltage dc, min. | 10 v dc | ||
| electrical connection 2, type | m8, plug | ||
| Anzeige | led | ||
| switching point precision | ±0,1 mt | ||
| voltage drop u at imax | ≤ 2,5 v | ||
| min. ambient temperature | -30 °c | ||
| certificates | ul (underwriters laboratories), culus, rohs | ||
| cable | with cable | ||
| indirect mounting for series | mni, csl-rd, icm |
