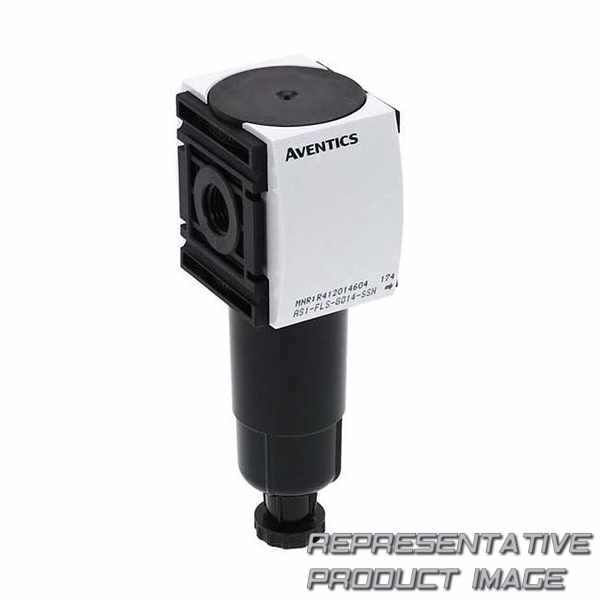

| parts | filter | ||
| port | g 1/4 | ||
| nominal flow qn | 1000 l/min | ||
| working pressure min. | 1.5 bar | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| max. achievable compressed air class acc. to iso 8573-1:2010 | 6 : 7 : - | ||
| filter element | exchangeable | ||
| mounting orientation | vertical | ||
| Gehäusematerial | polyamide | ||
| seal material | acrylonitrile butadiene rubber | ||
| material filter insert | cellpor |
| reservoir | metal reservoir without window | ||
| filter porosity | 5 µm | ||
| Kondensatablass | semi-automatic, open without pressure | ||
| working pressure max | 12 bar | ||
| max. ambient temperature | 50 °c | ||
| air supply | left | ||
| filter reservoir volume | 16 cm³ | ||
| Gewicht | 0.243 kg | ||
| Typ | can be assembled into blocks | ||
| material front plate | acrylonitrile butadiene styrene | ||
| material reservoir | metal |
