| Medium | compressed air | ||
| min. medium temperature | -15 °c | ||
| min. ambient temperature | -15 °c | ||
| control pressure min. | 3 bar | ||
| Anschlussart | pipe connection | ||
| valve type | spool valve, positive overlapping | ||
| pilot | internal | ||
| electrical connection number of poles | 3-pin | ||
| electrical connection type | plug | ||
| working pressure max | 10 bar | ||
| compressed air connection output | 1/8-27 ptf | ||

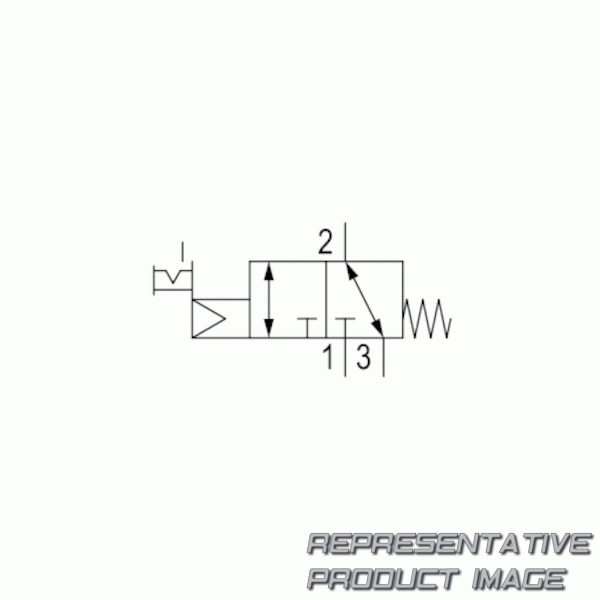

| switching principle | 3/2 | ||
| activation | electrically |
| max. medium temperature | 50 °c | ||
| max. ambient temperature | 50 °c | ||
| control pressure max. | 10 bar | ||
| return | with spring return | ||
| basic valve with electrical connector | basic valve without coil | ||
| pilot valve width | 26 mm | ||
| Dichtprinzip | soft seal | ||
| electrical connection size | en 175301-803, form b | ||
| Handhilfsbetätigung | with detent | ||
| working pressure min. | 3 bar | ||
| Ausführung | no, nc | ||
| nominal flow qn | 900 l/min |
