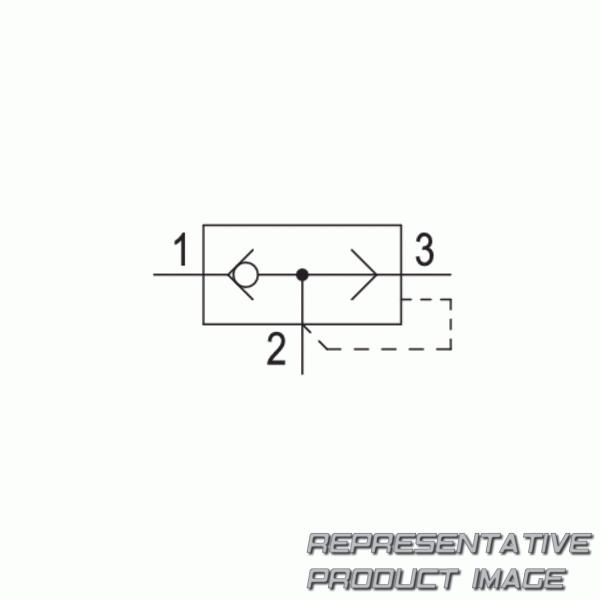

| Typ | poppet valve | ||
| compressed air connection input | g 3/4 | ||
| compressed air connection 2 | g 3/4 | ||
| port 3 (exhaust) | g 3/4 | ||
| nominal flow qn 1 to 2 | 2500 l/min | ||
| working pressure min. | 0.8 bar | ||
| min. ambient temperature | -18 °c | ||
| Gehäusematerial | brass |
| Medium | compressed air | ||
| compressed air connection type 1 | internal thread | ||
| compressed air connection type 2 | internal thread | ||
| compressed air connection type 3 | internal thread | ||
| nominal flow qn 2 to 3 | 9800 l/min | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 70 °c | ||
| seal material | polyurethane |
