| material clamping flange | steel | ||
| material sealing for piston rod | acrylonitrile butadiene rubber | ||
| material cylinder tube | steel | ||
| mounting | clamping flange | ||
| return spring force min. | 3.5 n | ||
| effective mass me min. | 1.5 kg | ||
| min. ambient temperature | -20 °c | ||
| Dämpfung | self-compensating | ||
| max. energy absorption/stroke | 14 nm | ||
| Mounting thread | m12x1 |
| material stop | steel, polyurethane | ||
| Werkstoff Kolbenstange | stainless steel | ||
| Gewicht | 0.06 kg | ||
| return spring force max. | 7 n | ||
| effective mass me max. | 7.7 kg | ||
| max. ambient temperature | 80 °c | ||
| Medium | oil | ||
| max. energy absorption/hour | 30000 nm | ||
| Hub | 10 mm | ||

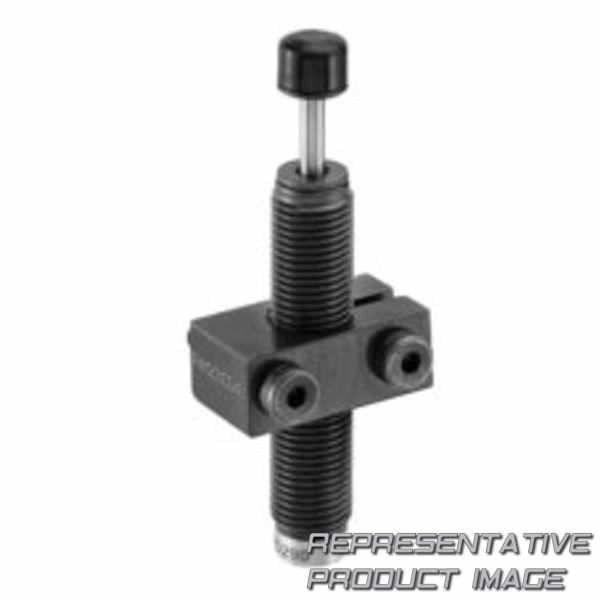

| Typ | sa1-mc |
