| Gehäusematerial | polyamide fiber-glass reinforced | ||
| Schwingfestigkeit | 10 - 55 hz, 1 mm | ||
| sampling speed | 3 m/s | ||
| max. measuring range resolution | 0,05 mm | ||
| max. measuring range | 64 mm | ||
| min. ambient temperature | -20 °c | ||
| certificates | culus | ||
| Ausgangsignal | 0 - 10 v dc, 4 - 20 ma | ||
| quiescent current (without load) | < 25 ma | ||
| cable | with cable | ||
| slot width | 6 mm groove | ||
| direct mounting for series | pra, pre, cci, kpz, ssi, gpc, cvi |
| Anzeige | led | ||
| Schockfestigkeit | 30 g / 11 ms | ||
| linearity deviation | 0,3 mm | ||
| led status display | yellow | ||
| max. ambient temperature | 70 °c | ||
| Schutzklasse | ip67 | ||
| sampling interval | 1 ms | ||
| repetitive precision max. measuring range | 0.1 mm | ||
| Kabellänge | 0.3 m | ||

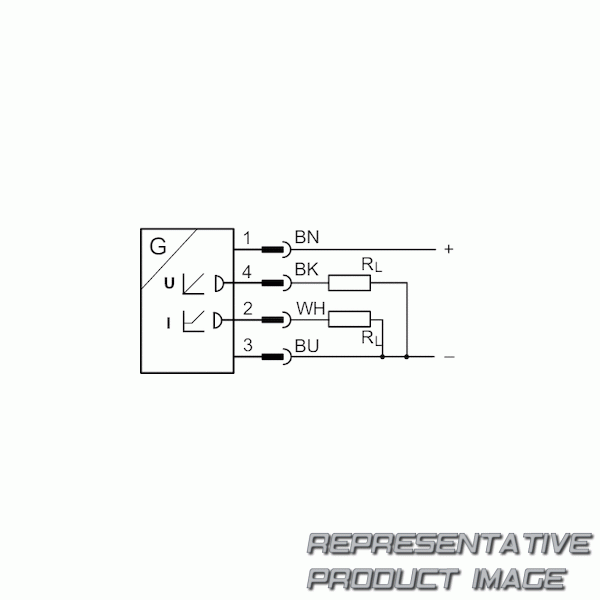

| Elektrischer Anschluss | plug | ||
| indirect mounting for series | trb, its, 167, mni, icm, trr |
