| material thread | brass | ||
| Gehäusematerial | stainless steel | ||
| pointer color | black | ||
| secondary scale unit (inside) | psi | ||
| main scale unit (outside) | bar | ||
| Medium | compressed air | ||
| min. ambient temperature | -25 °c | ||
| working pressure min. | 0 bar | ||
| display range min. | 0 bar | ||
| range of application min. | 0 bar | ||
| nominal diameter | 63 mm | ||
| class | 1,6 | ||

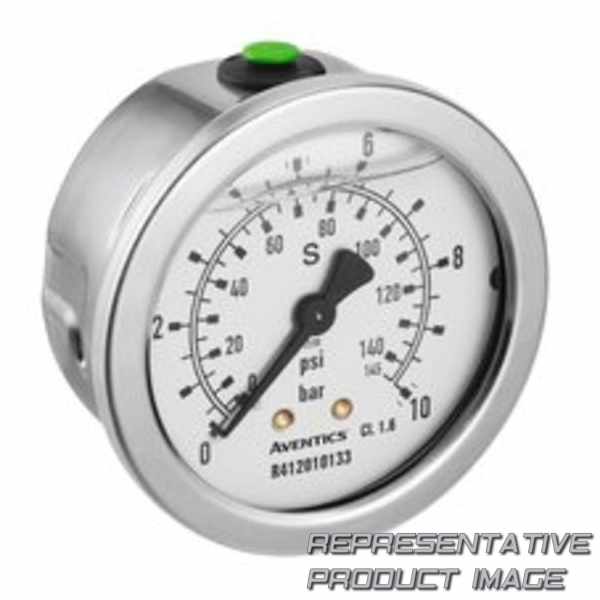

| pressure gauge version | bourdon tube pressure gauge, back port, with glycerin filling |
| material viewing window | polystyrene | ||
| Gewicht | 0.26 kg | ||
| secondary scale color (inside) | black | ||
| main scale color (outside) | black | ||
| background color | white | ||
| max. ambient temperature | 60 °c | ||
| working pressure max | 10 bar | ||
| display range max. | 10 bar | ||
| range of application max. | 8 bar | ||
| scale value | 0,50 | ||
| compressed air connection | r 1/8 | ||
| standardization | en 837-1 |
