| material front plate | acrylonitrile butadiene styrene | ||
| seal material | acrylonitrile butadiene rubber | ||
| Gewicht | 0.62 kg | ||
| nominal flow qn 1 to 2 | 12500 l/min | ||
| max. particle size | 5 µm | ||
| max. ambient temperature | 50 °c | ||
| Typ | poppet valve | ||
| can be assembled into blocks | can be assembled into blocks | ||
| Anschlussart | pipe connection | ||
| working pressure max | 16 bar | ||
| compressed air connection | g 3/4 | ||
| activation | electrically |
| material threaded bushing | die cast zinc | ||
| Gehäusematerial | polyamide | ||
| nominal flow qn 2 to 3 | 3700 l/min | ||
| compressed air connection, exhaust | g 1/2 | ||
| Medium | compressed air, neutral gases | ||
| min. ambient temperature | -10 °c | ||
| basic valve with electrical connector | basic valve without pilot valve, with cnomo subbase | ||

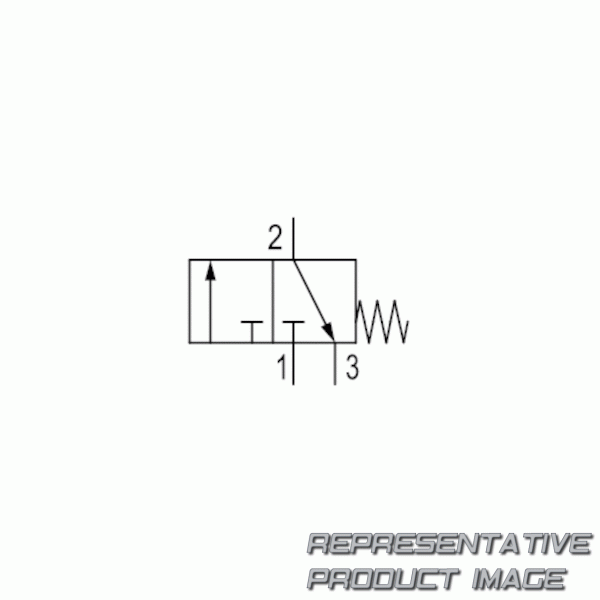

| parts | 3/2-directional valve | ||
| Dichtprinzip | soft seal | ||
| working pressure min. | 2.5 bar | ||
| nominal flow qn | 12500 l/min |
