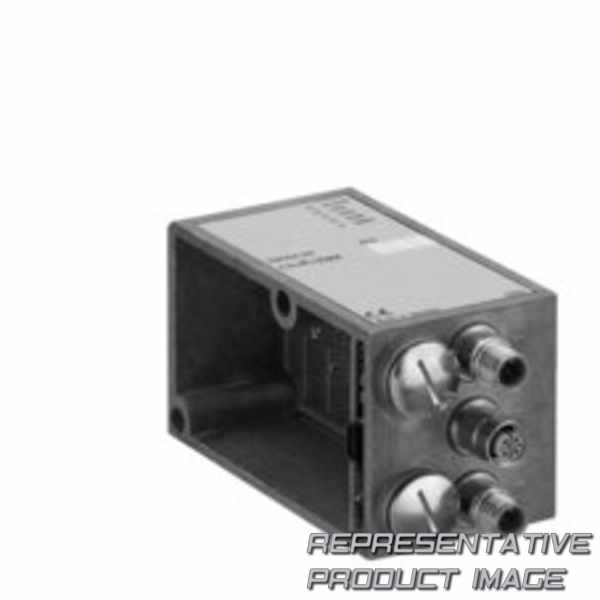

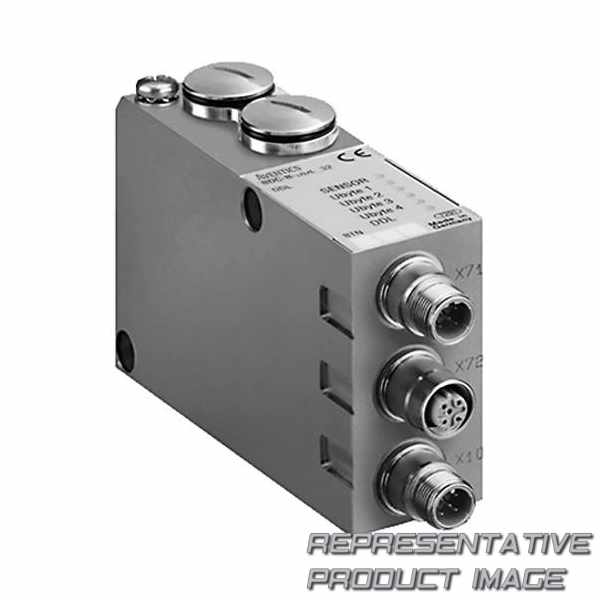

| Ausführung | bus coupler with driver | ||
| number of i/o connections | 32 outputs | ||
| electrical connection type | plug (male) | ||
| electrical connection number of poles | 4-pin | ||
| fieldbus design | b-design | ||
| max. ambient temperature | 50 °c | ||
| operational voltage electronics | 24 v dc | ||
| power consumption electronics | 0.05 a | ||
| total current for actuators | 3:00 am | ||
| max. power consumption per coil | 0.1 ma | ||
| generic immunity standard in accordance with norm | iec 61000-6-2 |
| fieldbus protocol | profibus dp | ||
| e/a capable | connection without i/o | ||
| electrical connection size | m12 | ||
| electrical connection coding | a-coded | ||
| min. ambient temperature | 0 °c | ||
| number of solenoid coils max. | 32 | ||
| electronics voltage tolerance | -0,75 | ||
| operating voltage, actuators | 24 v dc | ||
| Schutzklasse | ip65 | ||
| generic emission standard in accordance with norm | en 61000-6-4 | ||
| communication port | b-coded |
