| compressed air connection 1 | g 3/8 | ||
| mounting | thread-in | ||
| compressed air connection 2 | g 1/2 | ||
| nominal flow qn 1 to 2 | 2216 l/min | ||
| working pressure max | 20 bar | ||
| max. ambient temperature | 100 °c | ||
| certificates | ce declaration of conformity | ||
| seal material | fluorocaoutchouc |
| compressed air connection type 1 | external thread | ||

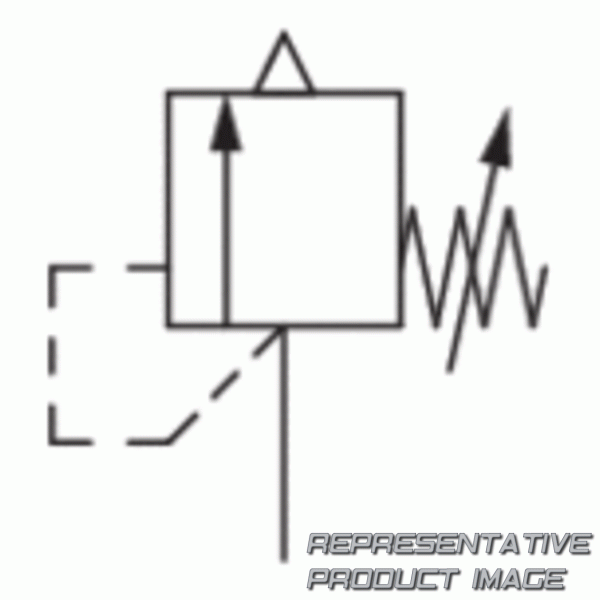

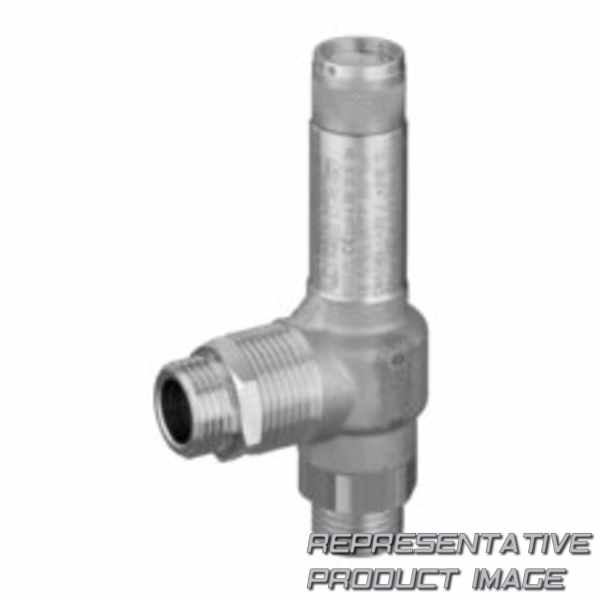

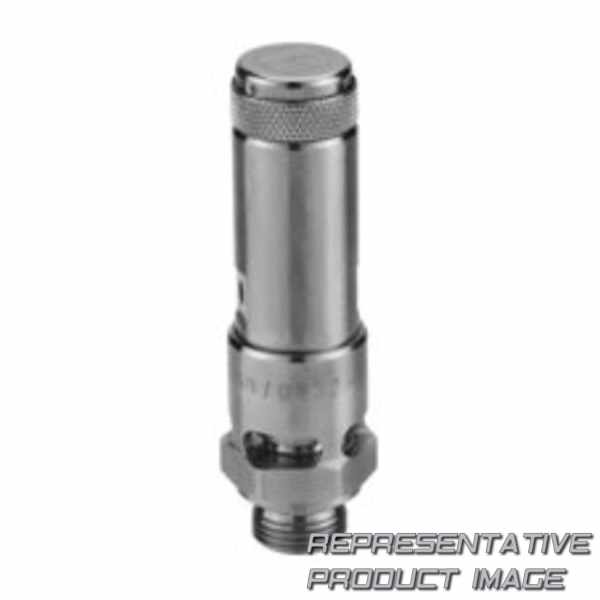

| Typ | poppet valve | ||
| opening pressure of valve | 5 bar | ||
| working pressure min. | 0 bar | ||
| min. ambient temperature | -20 °c | ||
| Medium | compressed air | ||
| Gehäusematerial | brass |
