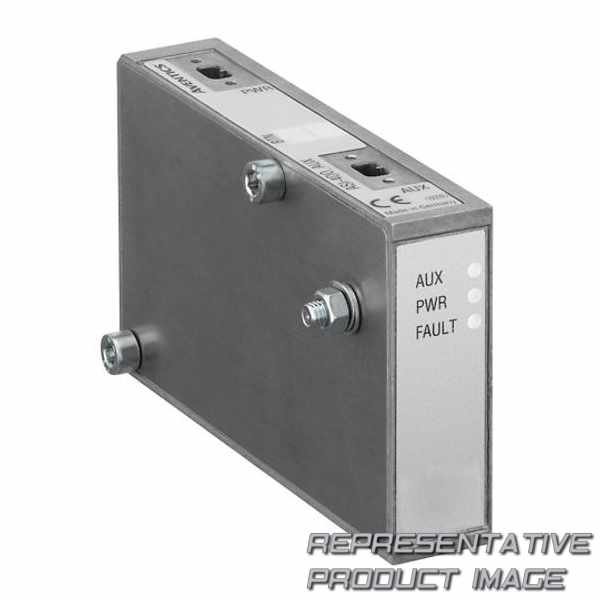

| Ausführung | bus coupler with driver | ||
| fieldbus protocol | as-i | ||
| e/a capable | connection without i/o | ||
| fieldbus design | b-design | ||
| max. ambient temperature | 50 °c | ||
| power consumption electronics | 0.08 a | ||
| Schutzklasse | ip65 | ||
| i/o code | 8 | ||
| generic emission standard in accordance with norm | en 50295 | ||
| communication port | yellow as-i flat cable | ||
| Gehäusematerial | aluminum, die-cast aluminum |
| i/o module version | 8do-aux | ||
| number of i/o connections | 8 outputs | ||
| electrical connection size | black as-i flat cable | ||
| min. ambient temperature | 0 °c | ||
| number of solenoid coils max. | 8 | ||
| operating voltage, actuators | 24 v dc | ||
| max. power consumption per coil | 0.03 ma | ||
| id code / id2 code | f / e | ||
| generic immunity standard in accordance with norm | en 50295 | ||
| Gewicht | 0.14 kg |
