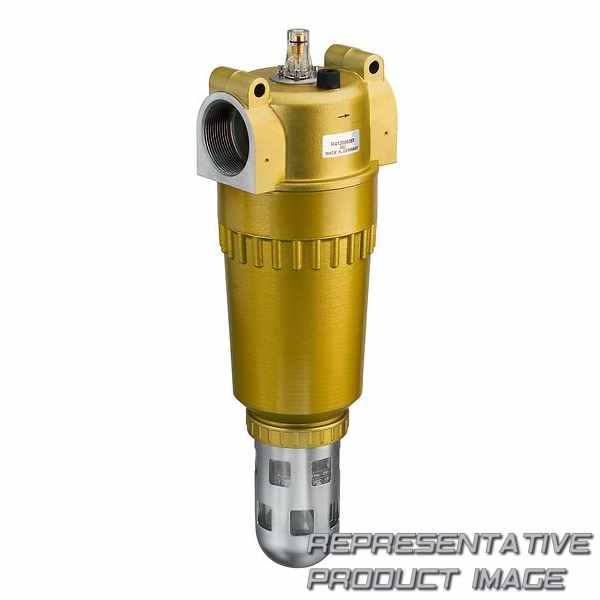

| parts | lubricator | ||
| compressed air connection | g 2 | ||
| mounting orientation | vertical | ||
| working pressure max | 16 bar | ||
| max. ambient temperature | 60 °c | ||
| type of filling | manual oil filling | ||
| oil dosing at 1000 l/min | 1-2 drops | ||
| Gewicht | 3.37 kg | ||
| seal material | acrylonitrile butadiene rubber | ||
| material protective guard | steel, chrome-plated |
| reservoir | reservoir, polycarbonate, with metal protective guard | ||
| nominal flow qn | 25000 l/min | ||
| working pressure min. | 0.5 bar | ||
| min. ambient temperature | -10 °c | ||
| Medium | compressed air, neutral gases | ||
| lubricator reservoir volume | 1700 cm³ | ||
| Funktion | oil-mist lubricator | ||
| Gehäusematerial | die-cast aluminum | ||
| material reservoir | polycarbonate |
