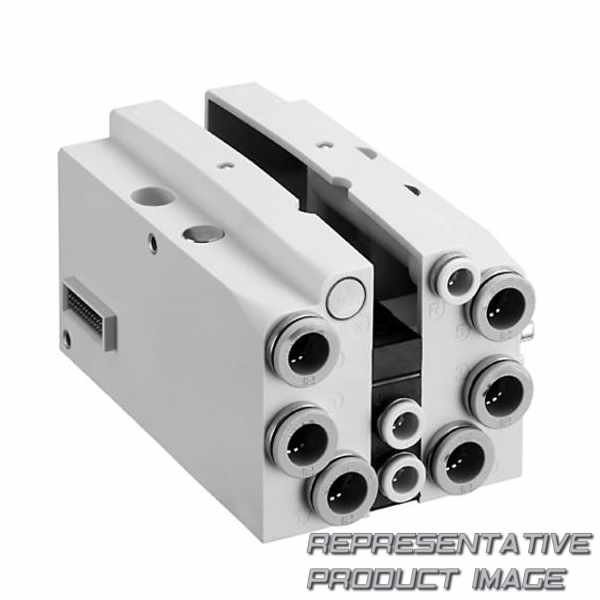

| Typ | base plate for a single or double solenoid valve | ||
| compressed air connection 2 / 4 | Ø 8 | ||
| exhaust type | ports separated | ||
| compressed air connection 12 | Ø 8 | ||
| pilot control exhaust | with collective pilot air exhaust | ||
| pilot | internal | ||
| working pressure min. | 2.5 bar | ||
| min. ambient temperature | 0 °c | ||
| min. medium temperature | 0 °c | ||
| Medium | compressed air | ||
| Rastermaß | 15.8 mm | ||
| Material base plate | polyamide |
| compressed air connection 1 | Ø 12 | ||
| port 3 / 5 | Ø 12 | ||
| exhaust (3,5) | with directional exhaust (3/5) | ||
| compressed air connection 14 | without | ||
| scope of delivery | 2x end plates with push-in fittings 1, 3, 5, r, x and 1x subbase with push-in fittings 2, 4, Ø8, internal pilot control | ||
| nominal flow qn | 700 l/min | ||
| working pressure max | 10 bar | ||
| max. ambient temperature | 50 °c | ||
| max. medium temperature | 50 °c | ||
| Max. number of valve positions | 1 | ||
| tightening torque for mounting screws | 1.1 nm | ||
| material push-in fitting | brass |
