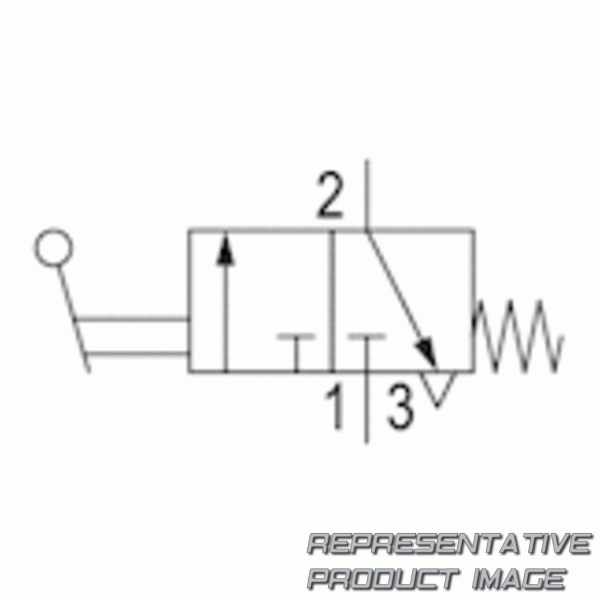

| Typ | poppet valve | ||
| compressed air connection 1 | Ø 12 | ||
| compressed air connection 2 | Ø 12 | ||
| min. ambient temperature | -20 °c | ||
| min. medium temperature | -20 °c | ||
| working pressure min. | -1 bar | ||
| flow qn | 1600 l/min | ||
| Gewicht | 0.047 kg | ||
| seal material | acrylonitrile butadiene rubber | ||
| Material hand lever | polyamide |
| Medium | compressed air | ||
| compressed air connection type 1 | push-in fitting | ||
| compressed air connection type 2 | push-in fitting | ||
| max. ambient temperature | 80 °c | ||
| max. medium temperature | 80 °c | ||
| working pressure max | 16 bar | ||
| delivery unit | 5 piece | ||
| Gehäusematerial | polyamide | ||
| Werkstoff Lösering | polyamide |
