| activation | electrically | ||

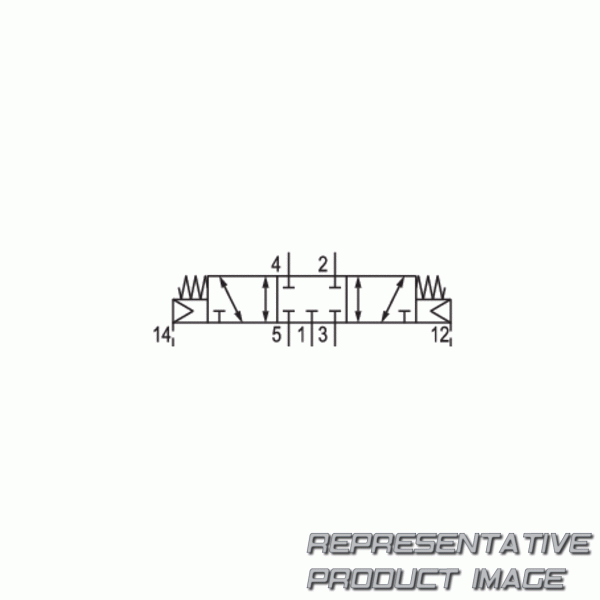

| switching principle | 5/3 | ||
| compressed air connection output | g 1/2 | ||
| working pressure max | 16 bar | ||
| electrical connection size | en 175301-803, form a | ||
| actuating control | double solenoid | ||
| pilot | external | ||
| pilot valve width | 30 mm | ||
| basic valve with electrical connector | basic valve without pilot valve | ||
| return | with spring return | ||
| control pressure max. | 16 bar | ||
| max. ambient temperature | 70 °c | ||
| max. medium temperature | 70 °c |
| nominal flow qn | 3800 l/min | ||
| Ausführung | closed center | ||
| working pressure min. | -0.95 bar | ||
| electrical connection type | plug | ||
| electrical connection number of poles | 3-pin | ||
| Dichtprinzip | soft seal | ||
| atex | atex optional | ||
| valve type | spool valve, positive overlapping | ||
| Anschlussart | pipe connection | ||
| control pressure min. | 3 bar | ||
| min. ambient temperature | -15 °c | ||
| min. medium temperature | -15 °c |
