| frame size | iso 1 | ||
| power consumption dc | 5 w | ||
| compressed air connection, exhaust | base plate iso 5599-1 | ||
| Anschlussart | plate connection | ||
| valve type | spool valve | ||
| Standards | iso 5599-1 | ||
| Dichtprinzip | soft seal | ||
| electrical connection type | plug | ||
| voltage tolerance dc | -10% / +10% | ||
| working pressure max | 8 bar | ||
| compressed air connection output | base plate iso 5599-1 | ||

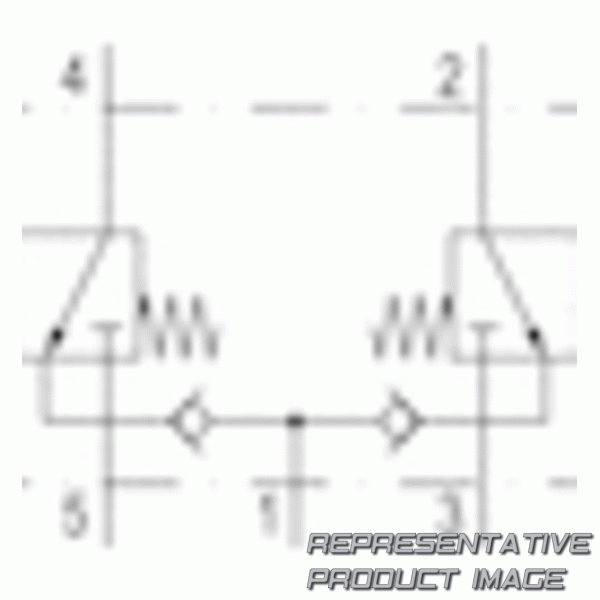

| switching principle | 2x3/2 | ||
| activation | electrically |
| flow conductance c | 3.2 l/(s*bar) | ||
| compressed air connection pilot exhaust | m5 | ||
| compressed air connection input | base plate iso 5599-1 | ||
| blocking principle | single base plate principle | ||
| pilot valve width | 22 mm | ||
| pilot | external | ||
| electrical connection size | form b, industry | ||
| Handhilfsbetätigung | with detent | ||
| dc operating voltage | 24 v | ||
| working pressure min. | 0 bar | ||
| Ausführung | nc/nc | ||
| nominal flow qn | 950 l/min |
