| material front plate | steel | ||
| Gehäusematerial | aluminum | ||
| pressure for determining piston forces | 6,3 bar | ||
| Medium | compressed air | ||
| speed max. | 0.5 m/s | ||
| retracting piston force | 42 n | ||
| oil content of compressed air max. | 5 mg/m³ | ||
| max. ambient temperature | 70 °c | ||
| working pressure max | 8 bar | ||
| Dämpfung | elastic | ||
| Bearing Type | ball bearing | ||
| Hub | 50 mm | ||
| piston Ø | 10 mm |
| seal material | polyurethane | ||
| Gewicht | 0.29 kg | ||
| max. particle size | 50 µm | ||
| impact energy | 0.04 j | ||
| extracting piston force | 49 n | ||
| port | m5 | ||
| oil content of compressed air min. | 0 mg/m³ | ||
| min. ambient temperature | -10 °c | ||
| working pressure min. | 2 bar | ||
| magnetic piston | with magnetic piston | ||

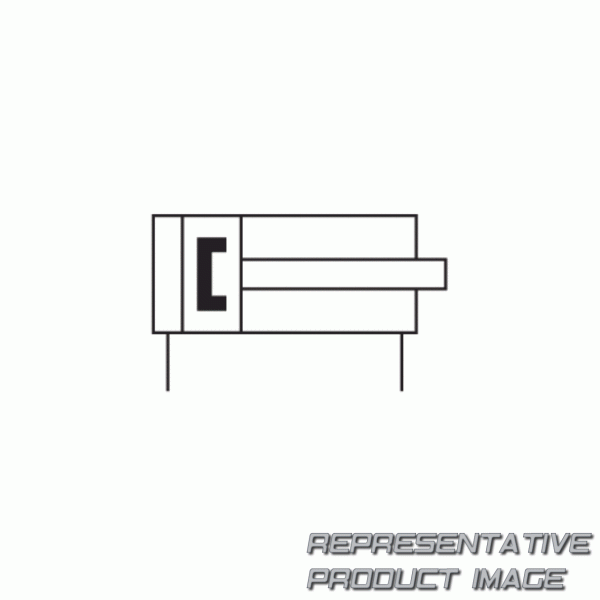

| Funktionsprinzip | double-acting | ||
| piston rod Ø | 4 mm |
