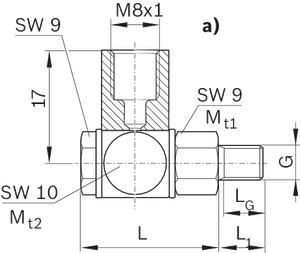

a)
For tube Ø 4 mm. For connection in accordance with DIN 2353 (solderless tube fittings)
| G | M6 | ||
| L1 | 8 | mm | |
| Mt1 | 1,80 | Nm | |
| Masse | 17 | g |
| Linie | 22 | mm | |
| LG | 6,50 | mm | |
| Mt2 | 5 | Nm |
