R201189314 Bosch Rexroth

REXROTH R201189314 ball runner block nrfg

Name: R201189314 REXROTH
Brand: REXROTH
SKU: 296952-de-eur
Price: 490.49 EUR
Availability: InStock

KWD-020-SNS-C0-H-0

490,49 €

2 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

All metal parts are made from corrosion-resistant steel
All plastic parts are made from certified materials
Excellent dynamic characteristics
The same high load ratings in all four main directions of loading
Can be used on all SNS Ball Guide Rails

Baugröße	20
Vorspannungsklasse	C0
Genauigkeitsklasse	H

Dichtung	SS
Schmierung	Not pre-lubricated, no preservative oil
Gewicht	350g

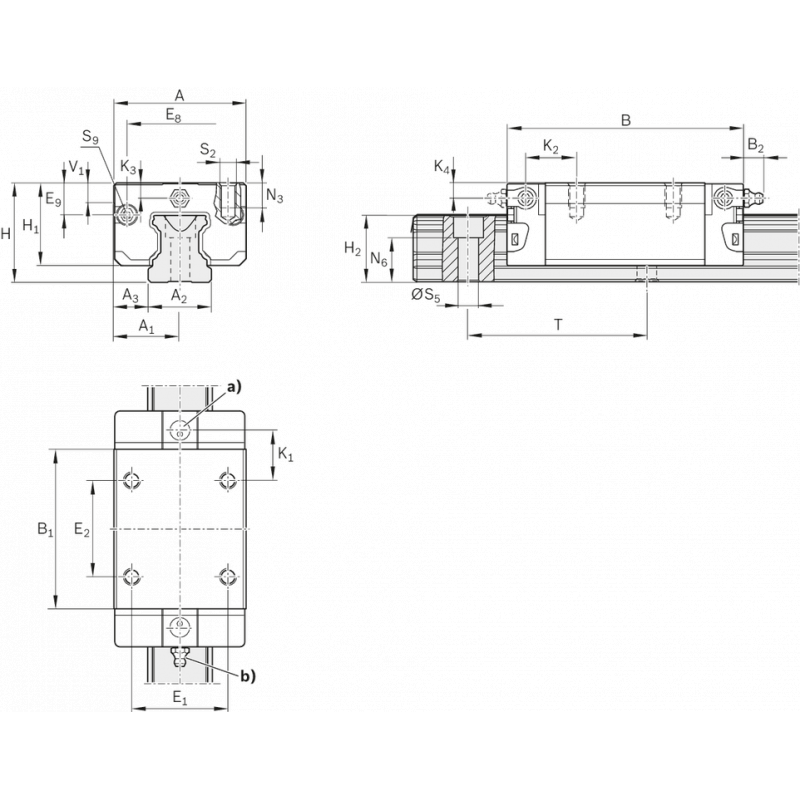

Dimensions
Technical data

^a) For O-ring
Size 15: Ø 4 · 1.0 (mm)
Sizes 20 - 35: Ø 5 · 1.0 (mm)
Open the lube port if required
^b) Lube nipple, sizes 15 – 20:
Funnel-type lube nipple DIN 3405-A M3x5, B₂ = 1.6 mm
If you use different lube nipples, observe the screw-in depth of 5 mm!
Lube nipple, sizes 25 - 35:
Hydraulic-type lube nipple DIN 71412-A M6x8, B₂ = 9.5 mm
If you use different lube nipples, observe the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection possible on all sides.

Industriekomponente	44	mm
A₂	20	mm
B	75 mm
E₁	32	mm
E₈	32,50	mm
H	30	mm
Dimension H₂ mit Abdeckstreifen	20,75	mm
K₁	13,80	mm
K₃	3,35	mm
N₃	7,50	mm
S₂	M5
S₉	M3x5
V₁	6	mm

A₁	22	mm
A₃	12	mm
B₁	49,60	mm
E₂	36	mm
E₉	7,30	mm
H₁	25,35	mm
Dimension H₂ ohne Abdeckstreifen	20,55	mm
K₂	13,80	mm
K₄	3,35	mm
N₆	13.2 mm ±0.5
ØS₅	6	mm
Drehmoment	60	mm
