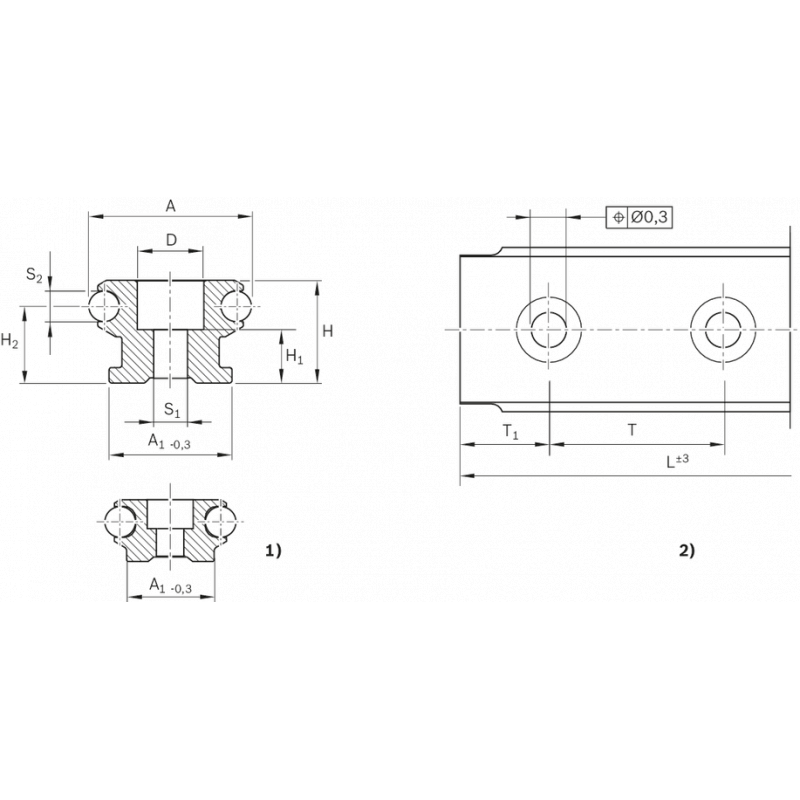

1)
Size 42
2)
Shown rotated through 90°. Mounting hole pattern not to scale.
| Industriekomponente | 20 | mm | |
| D | 9,40 | mm | |
| H1 | 5 | mm | |
| S1 | 4,50 | mm | |
| Linie (Guide tracks up to 3500 mm are made of one-piece precision steel shafts.) | 3.500 | mm | |
| Drehmoment | 62,50 | mm | |
| T1 min | 13 | mm |
| A1 | 17 | mm | |
| H | 12 | mm | |
| H2 | 9 | mm | |
| S2 | 4 | ||
| Lmax | 7.000 | mm | |
| T1S | 29,25 | mm |
| Temperaturstabilität | -20 °C ... +80 °C |
| Gewicht | 0,60 | kg |
