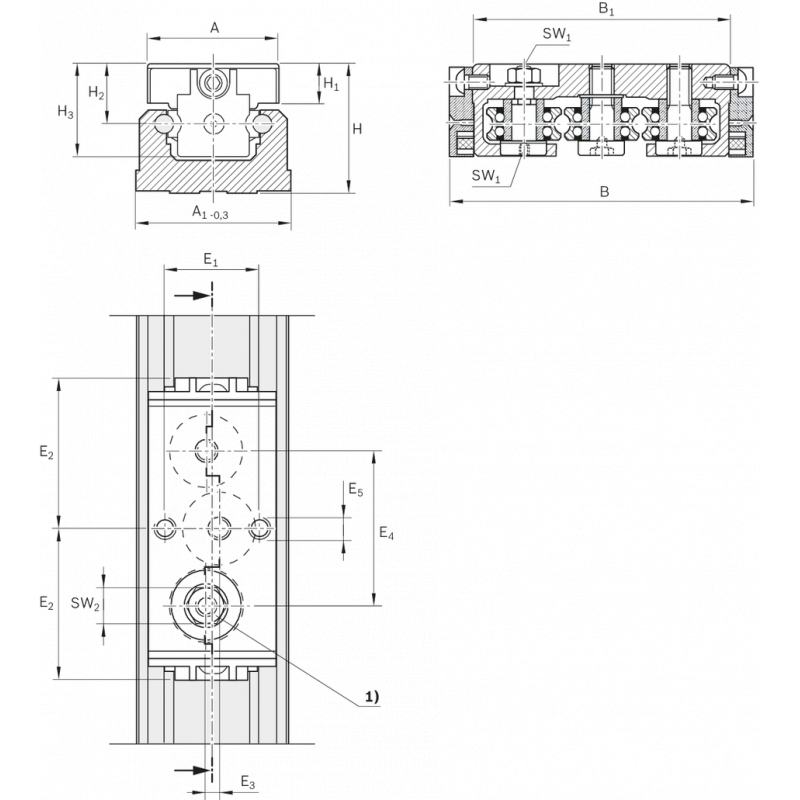

1)
Eccentric setting
| Industriekomponente | 28 | mm | |
| B | 66 | ||
| E1 | 20 | mm | |
| E3 | 3 | mm | |
| E5 | M5 | ||
| H1 | 8,50 | mm | |
| H3 | 20 | mm | |
| SW2 | 7 | mm |
| A1 | 33 | mm | |
| B1 | 56 | mm | |
| E2 | 33 | mm | |
| E4 | 34 | mm | |
| H | 28 | mm | |
| H2 | 13 | mm | |
| SW1 | 2 | mm |
| vmax (For average load.) | 10 | m/s | |
| Temperaturstabilität | -20 °C ... +80 °C | ||
| Fy max | 350 | N | |
| Fz max | 200 | N | |
| Mx max | 1,4 | ||
| My max | 3,4 | ||
| Mz max | 6,1 |
| amax | 50 | m/s² | |
| Gewicht | 0,08 | kg | |
| F0y max | 350 | N | |
| F0z max | 300 | N | |
| M0x max | 2,2 | ||
| M0y max | 5,1 | ||
| M0z max | 6,1 |
