1)

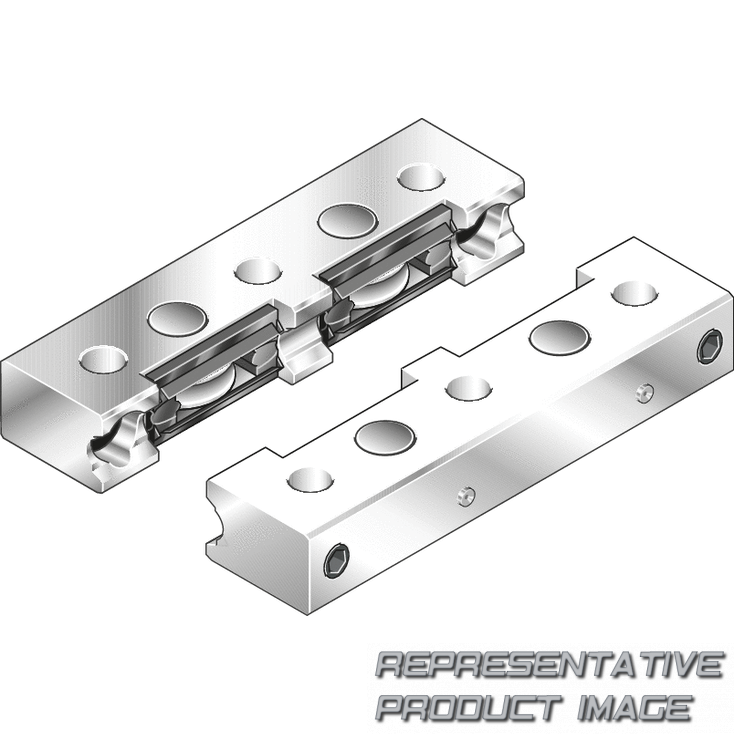

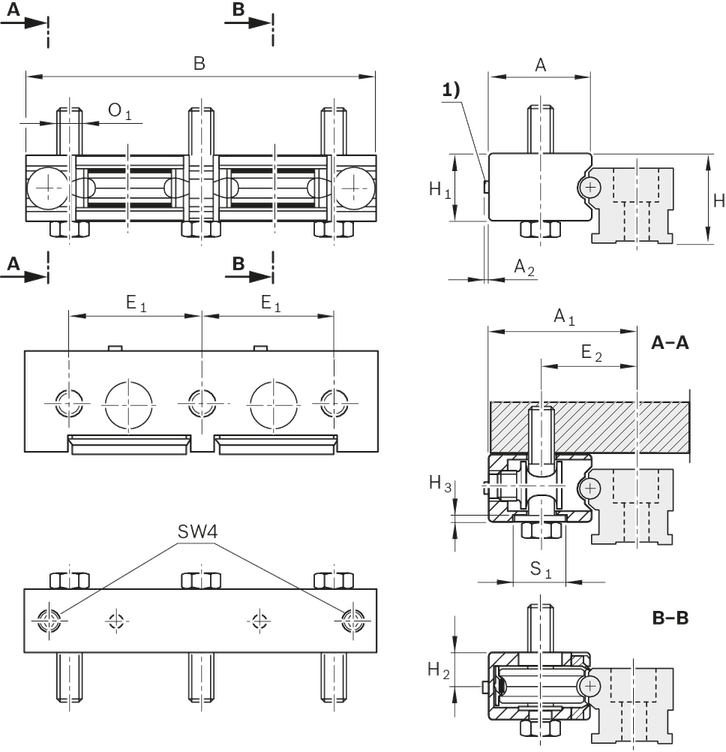

Funnel-type lube nipple ø 3 mm
| Industriekomponente | 57 | mm | |
| A2 | 2 | mm | |
| E1 | 76 | mm | |
| H | 42 | mm | |
| H2 | 16,90 | mm | |
| O1 (Fastening screws are not included. Screws according to ISO 4014 8.8 require a washer according to ISO 7089. ) | M12 |
| A1 | 77,50 | mm | |
| B | 194,50 | ||
| E2 | 47,50 | mm | |
| H1 | 33,50 | mm | |
| H3 | 3 | mm | |
| S1 | 26 | mm |
| Fy max | 8.000 | N | |
| Fz max | 4.800 | N | |
| Mx max | 2,4 · a | ||
| My max | 194 | Nm | |
| Mz max | 324 | Nm | |
| vmax (For average load.) | 10 | m/s | |
| Temperaturstabilität | -20 °C ... +80 °C |
| F0y max | 8.000 | N | |
| F0z max | 7.900 | N | |
| M0x max | 3,9 · a | ||
| M0y max | 320 | Nm | |
| M0z max | 324 | Nm | |
| amax | 50 | m/s² | |
| Gewicht | 1,01 | kg |
