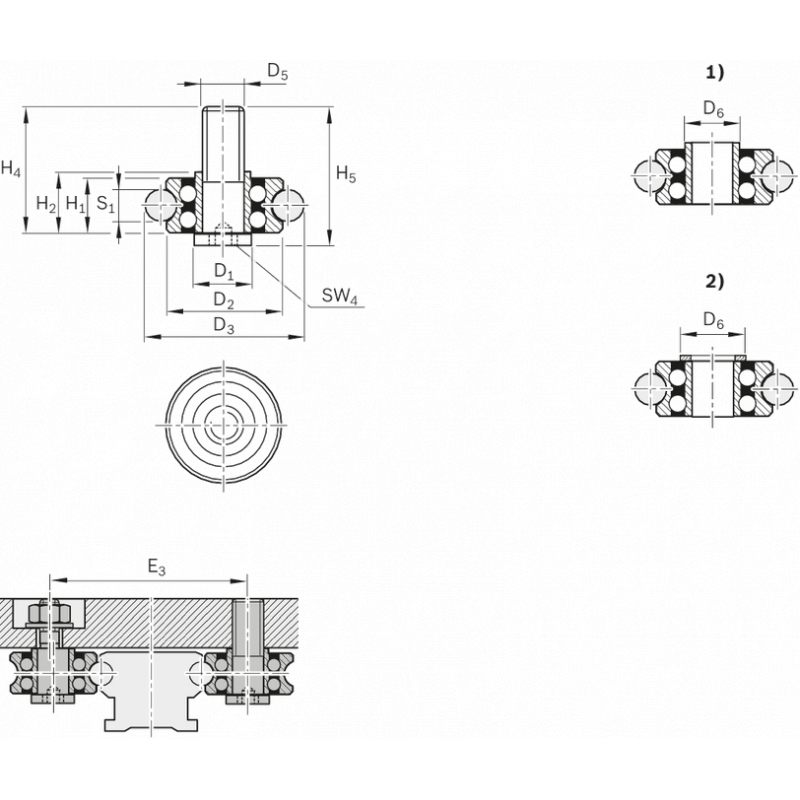

1)
Sizes 20, 25, 32
2)
Sizes 52, 52-h, 52-sh
| D1 g6 | 25 | mm | |
| D3 | 63,30 | mm | |
| D6 | 24 | mm | |
| Toleranz für E3 | ± 0.2 | ||
| H2 | 21 | mm | |
| H5 | 50,30 | mm | |
| SW4 | 10 | mm |
| D2 | 47 | mm | |
| D5 | M12 | ||
| E3 (Recommended hole spacing when using the following cam roller guide rails: standard R1921, with slot R1922, flat R1924 ) | 95 | mm | |
| H1 | 19 | mm | |
| H4 | 44,30 | mm | |
| S1 | 10 | mm |
| Fy max | 5.300 | N |
| Fz max | 1.600 | N |
