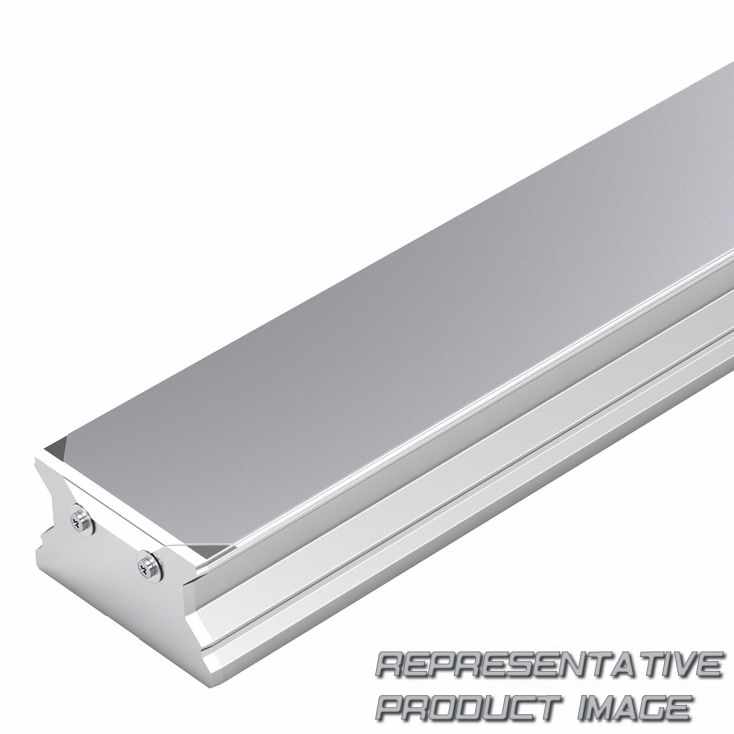

Roller guide rail with cover strip and threaded holes on end faces.
Retaining with screws and washers (included).
| D | 24 | mm | |
| N6 | 39 mm ±0.5 | ||
| N8 | 37 | mm | |
| ØS5 | 20 | mm | |
| T1 min (with a shortfall of T1 min Front thread not possible. Secure the cover strip! Observe the mounting instructions! ) | 35,50 | mm | |
| nB | 53 |
| Dimension H2 mit Abdeckstreifen (with cover strip 0.3 mm) | 58,15 | mm | |
| N7 | 40 | mm | |
| N9 | 4,80 | mm | |
| Drehmoment | 75 | mm | |
| T1 s (Preferred dimension T1S with tolerance +1/-1.5 ) | 38 | mm |
| Maschinenschutz | 34,70 | kg | |
| Betriebsbedingungen | Operating conditions | ||
| Zulässige Umgebungstemperatur (min ... max) (Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. ) | -10 °C ... +80 °C |
| Lmax (Roller guide rails R1873 .6 .. Resist CR only up to 3971 mm long) | 3.971 | mm | |
| Baugröße | 65/100 |
