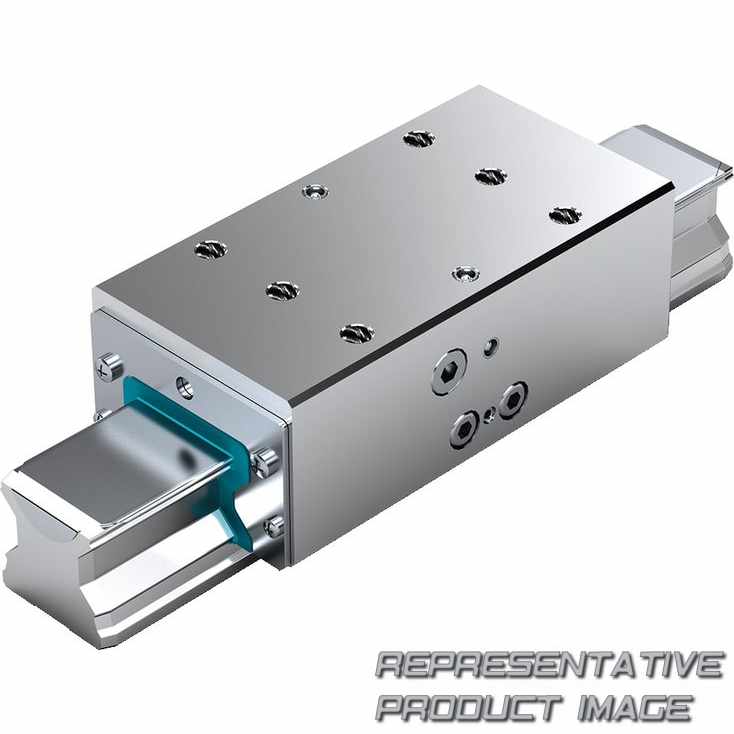

a)
Hydraulic connection*) G1 on two sides
b)
In addition, both middle mounting holes must be used!
*) Only one connection needed.
All connections sealed upon delivery.
| Industriekomponente | 86 | mm | |
| B3 | 174 | mm | |
| E2 | 80 | mm | |
| G1 | 1/8" | ||
| H1 | 61 | mm | |
| N3 | 18 | mm |
| B1 | 163 | mm | |
| E1 | 60 | mm | |
| Kraft | 24 | mm | |
| H | 70 | mm | |
| Industriesensor | - | ||
| S2 | M10 |
| Haltekraft (The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). For permissible holding forces see “Technical data and calculations.” ,At 150 bar) | 9.900 | N | |
| Maximaler hydraulischer Betriebsdruck | 150 | bar | |
| Betriebsbedingungen | Operating conditions | ||
| Zulässige Umgebungstemperatur (min ... max) | 0 °C ... +70 °C |
| Schluckvolumen (Per clamping) | 1,80 | cm³ | |
| Masse | 4,95 | kg | |
| Baugröße | 45 |
