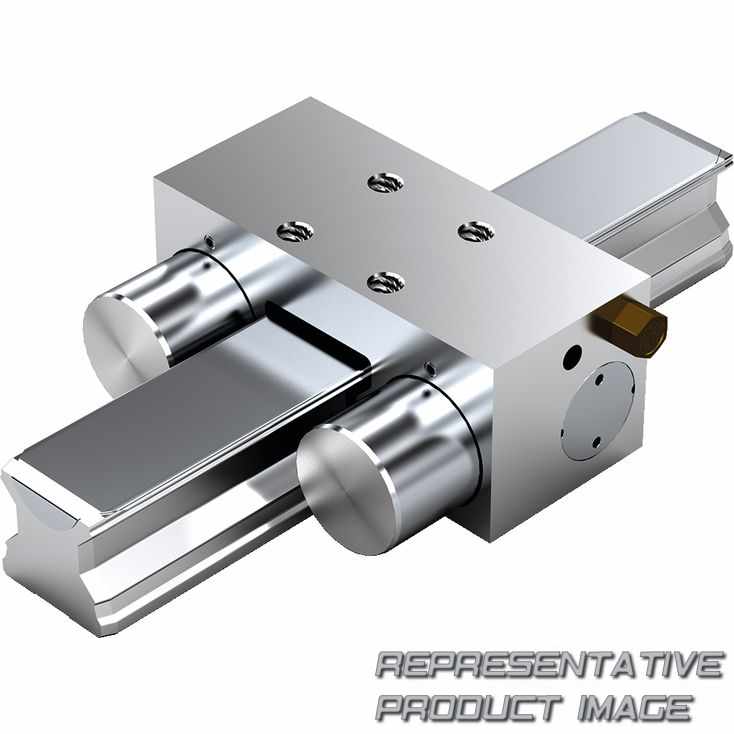

a)
Air connection*) M5 on two sides for release pressure
b)
Connection*) M5 on two sides for Plus-Air connection or air filter
c)
Adjusting screw on two sides
d)
Spacer plate (accessory) for MKS
e)
Air filter: connection M5 (possible on two sides)
*) Only one connection needed.
All connections sealed upon delivery.
| F3 | 11 | mm | |
| H | 48 | mm | |
| A1 | 68 | mm | |
| B1 | 67,50 | mm | |
| E1 | 24 | mm | |
| E3 | 7,50 | mm | |
| F2 | 24,50 | mm | |
| H2 | 28 | mm | |
| S2 | M8 |
| F4 | 14,50 | mm | |
| Industriekomponente | 100 | mm | |
| B | 39 | ||
| D | 28 | mm | |
| E2 | 24 | mm | |
| F1 | 12 | mm | |
| H1 (for roller runner block .H. (...high...) Spacer plate necessary.) | 44 | mm | |
| N3 | 10 | mm | |
| Industrielle Stärke | 5,50 | mm |
| Federenergie-Haltekraft mit Standard-Luftanschluss (Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). ) | 1.250 | N | |
| Luftverbrauch (Normalliter) Standard-Luftanschluss | 0,03 | dm³/stroke | |
| Maximaler pneumatischer Betriebsdruck | 8 | bar | |
| Masse | 1 | kg | |
| Baugröße | 35 |
| Federenergie-Haltekraft mit Air-Plus-Anschluss (Holding force by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). ,Increased holding force by additional air admission at air-plus port with 6.0 bar. Circuit across 5/2- or 5/3-way directional control valve. ) | 3.250 | N | |
| Luftverbrauch (Normliter) Air-Plus-Anschluss | 0,13 | dm³/stroke | |
| Freigabedruck min. | 5,50 | bar | |
| Betriebsbedingungen | Operating conditions | ||
| Zulässige Umgebungstemperatur (min ... max) | 0 °C ... +70 °C |
