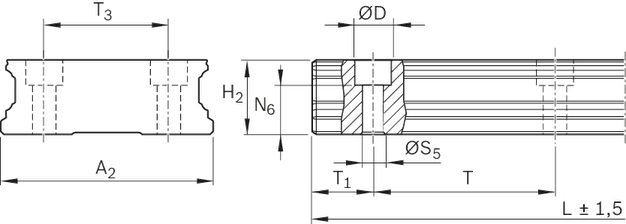

| D | 15 | mm | |
| N6 | 20.5 mm ±0.5 | ||
| Drehmoment | 80 | mm | |
| T1 s (Preferred dimension T1S Recommended with tolerances ± 0.75. ) | 38 | mm | |
| T3 | 60 | mm |
| H2 | 31,85 | mm | |
| ØS5 | 9 | mm | |
| T1 min | 12 | mm | |
| T1 max | 68 | mm | |
| nB | 48 |
| Maschinenschutz | 21 | kg | |
| Betriebsbedingungen | Operating conditions | ||
| Zulässige Umgebungstemperatur (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. ) | 0 °C ... +80 °C |
| Lmax | 3.836 | mm | |
| Baugröße | 35/90 |
