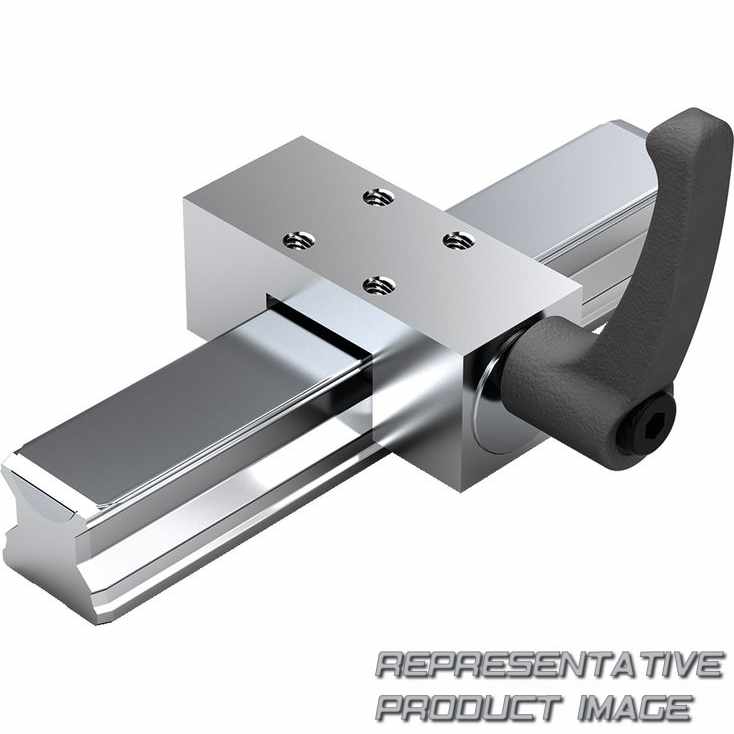

a)
Spacer plate (accessory)
b)
Position of the hand lever can be changed.
| Industriekomponente | 160 | mm | |
| C | 69,50 | mm | |
| E2 | 35 | mm | |
| H | 90 | mm | |
| Linie | 95 | mm | |
| L2 (Hand lever disengaged) | 61,50 | mm | |
| S2 | M16 |
| B | 64 | ||
| E1 | 35 | mm | |
| E3 | 14,50 | mm | |
| H1 (Ball/Roller Runner Block .H. (...high...) Spacer plate necessary.) | 66 | mm | |
| L1 | 56,50 | mm | |
| N3 | 20 | mm |
| Haltekraft (The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).) | 2.000 | N | |
| Masse | 2,84 | kg | |
| Baugröße | 65 |
| Anziehdrehmoment | 22 | Nm | |
| Betriebsbedingungen | Operating conditions | ||
| Zulässige Umgebungstemperatur (min ... max) | 0 °C ... +70 °C |
