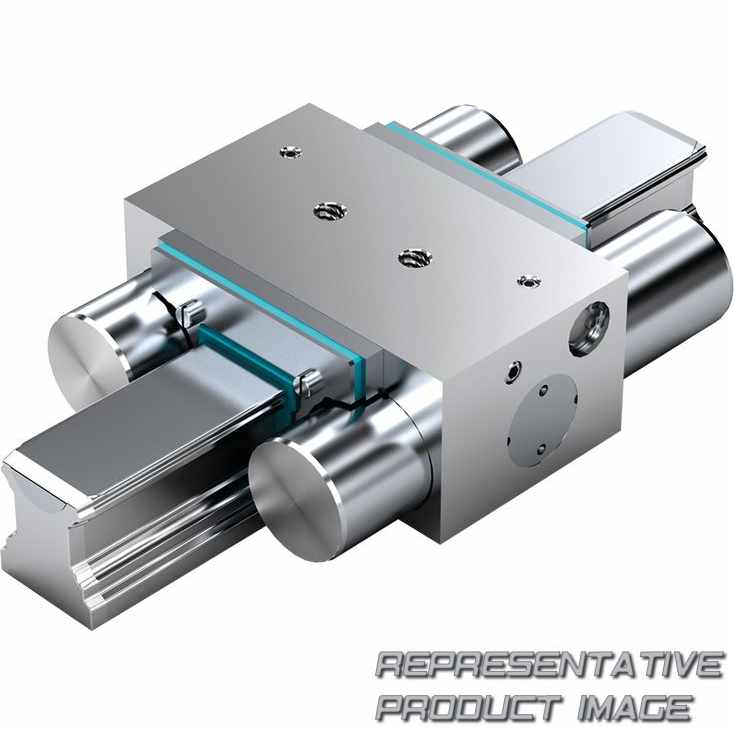

a)
Air port*) G1 on two sides for release pressure
b)
Quick-exhaust on two sides
c)
Adjusting screw on two sides
d)
Exhaust on two sides
e)
Spacer plate (accessory)
f)
Piston
g)
Spring-loaded accumulator
h)
Size 55 - 65
*) Only one connection needed.
All connections sealed upon delivery.
| Industriekomponente | 75 | mm | |
| B | 44 | ||
| B2max | 95,50 | mm | |
| D2 | 22 | mm | |
| E2 | - | ||
| F1 | 6,50 | mm | |
| F3 | 7 | mm | |
| G1 | M5 | ||
| H1 (Ball runner block .H. (...high...) Spacer plate necessary.) | 32,50 | mm | |
| N3 | 8 | mm |
| A1 | 49 | mm | |
| B1 | 20,20 | mm | |
| D1 | 22 | mm | |
| E1 | 20 | mm | |
| E3 | 22 | mm | |
| F2 | 16,50 | mm | |
| F4 | 34,70 | mm | |
| H | 36 | mm | |
| H2 | 20 | mm | |
| S2 | M6 |
| Federenergie-Haltekraft mit Standard-Luftanschluss (Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). ) | 1.300 | N | |
| Maximaler pneumatischer Betriebsdruck | 8 | bar | |
| Masse | 1 | kg | |
| Baugröße | 25 |
| Luftverbrauch (Normalliter) Standard-Luftanschluss | 0,05 | dm³/stroke | |
| Freigabedruck min. | 4,50 | bar | |
| Betriebsbedingungen | Operating conditions | ||
| Zulässige Umgebungstemperatur (min ... max) | 0 °C ... +70 °C |
