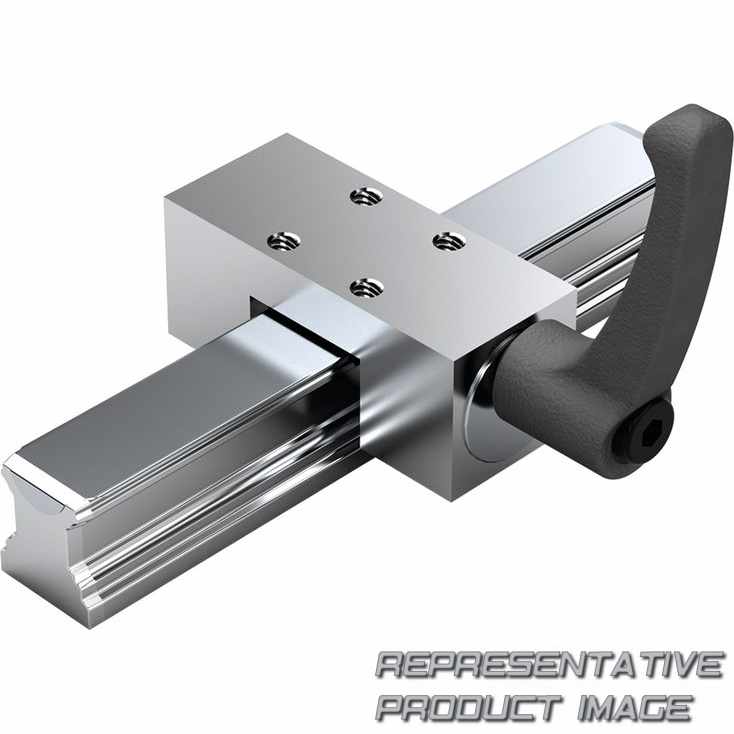

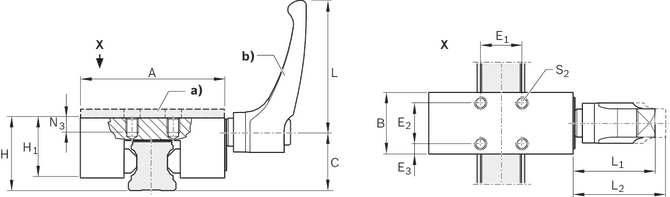

a)
Spacer plate (accessory)
b)
Position of the hand lever can be changed.
| Industriekomponente | 47 | mm | |
| C | 19 | mm | |
| E2 | 17 | mm | |
| H | 24 | mm | |
| Linie | 44 | mm | |
| L2 (Hand lever disengaged) | 33 | mm | |
| S2 | M4 |
| B | 25 | ||
| E1 | 17 | mm | |
| E3 | 4 | mm | |
| H1 (Ball runner block .H. (...high...) Spacer plate necessary.) | 19 | mm | |
| L1 | 30 | mm | |
| N3 | 5 | mm |
| Haltekraft (The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).) | 1.200 | N | |
| Masse | 0,16 | kg | |
| Baugröße | 15 |
| Anziehdrehmoment | 4 | Nm | |
| Betriebsbedingungen | Operating conditions | ||
| Zulässige Umgebungstemperatur (min ... max) | 0 °C ... +70 °C |
