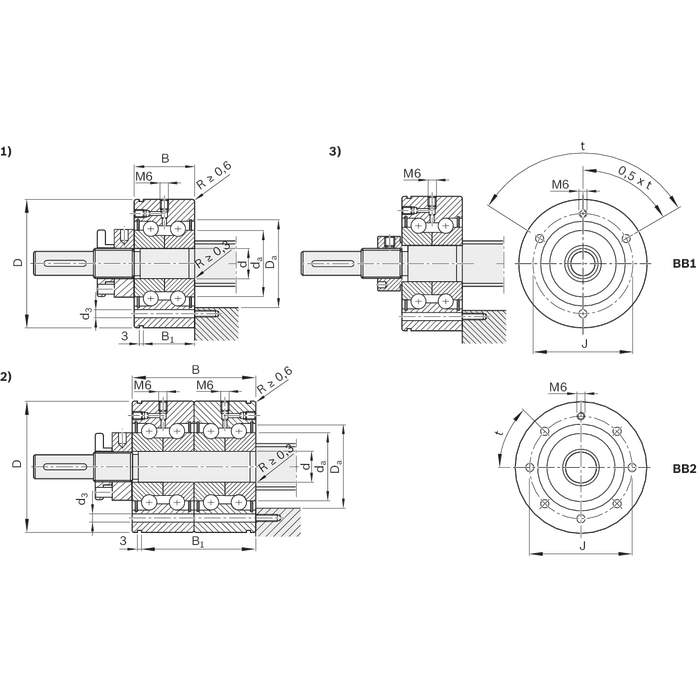

1)
LGF-B-…with slotted nut NMA, LGF-A-…with slotted nut NMA
2)
LGF-C-…with slotted nut NMA
3)
LGF-B-…with slotted nut NMZ
| Baugröße | 25 x 5/10/25 | ||
| Abmessungen | 62 mm -0.013 | ||
| Abmessungen | 17 | d | |
| Anschlussmaße | 34 | J | |
| Anschlussmaße | 23 | J | |
| Befestigungslöcher | 3 | Minimum number | |
| Befestigungslöcher | 120 | Minimum number |
| Abmessungen | 17 mm -0.01 | ||
| Abmessungen | 25 mm -0.25 | ||
| Anschlussmaße | 48 | J | |
| Anschlussmaße | 37 | J | |
| Anschlussmaße | 33 | J | |
| Befestigungslöcher | 6,80 | Minimum number | |
| Befestigungslöcher | BB1 |
| Baugröße | 25 x 5/10/25 | ||
| C0 (Load on bearing (see general technical notes and information for bearings, “Project planning notes”) ) | 31.000 | N | |
| Rfb | 450 | N/μm | |
| nmax | 3.300 | rpm |
| C (Load on bearing (see general technical notes and information for bearings, “Project planning notes”) ) | 18.800 | N | |
| MRb | 0,24 | Nm | |
| Rkl | 80 | Nm/mrad | |
| Masse (R159001700) | 0,49 | kg |
