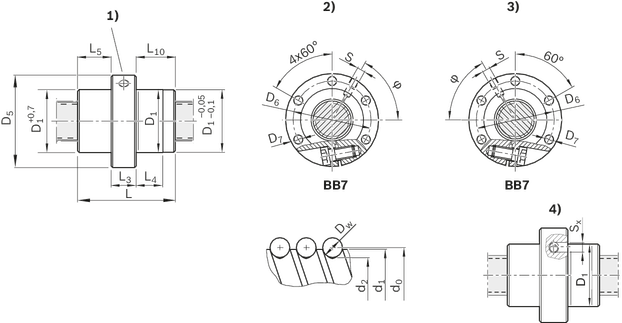

1)

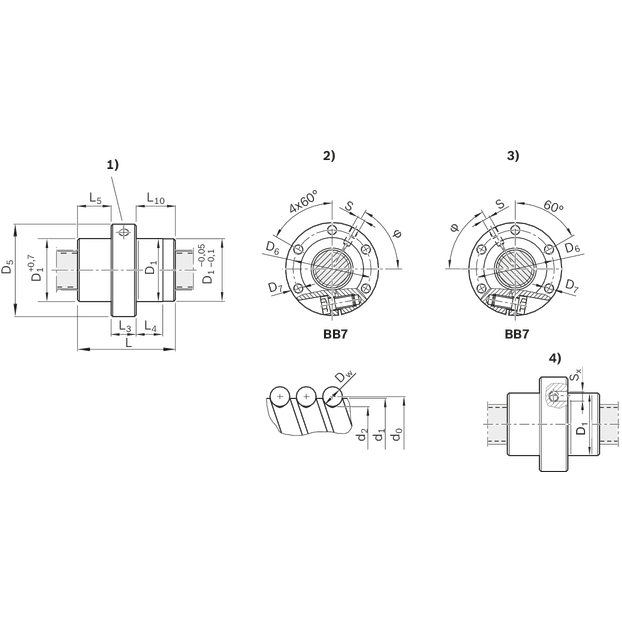

Lube port at flange center (lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm; for size 8 x 2.5 a DIN 3405 funnel-type lube nipple is provided.)
2)
right
3)
left
4)
Nut rework: Axial lube port
| D1 | 31 | mm | |
| Baugröße | 32 x 10R x 3,969 - 5 | ||
| D1 max | 47,97 | ||
| D5 | 73 | mm | |
| D6 | 60 | mm | |
| Linie | 77 | mm | |
| l4 | 16 | ||
| L10 | 28,50 | ||
| Sx | 4 |
| D2 | 27,90 | mm | |
| D1 min | 47,94 | ||
| D1 | 48 | mm | |
| Lochmuster | BB7 | ||
| D7 | 6,60 | mm | |
| l3 | 20 | ||
| L5 | 28,50 | ||
| S (Lube port machining: Flat surface L3 ≤ 15 mm, countersink L3 > 15 mm; for size 8 x 2.5 a DIN 3405 funnel-type lube nipple is provided. ) | M6 | ||
| Kraft | 168 | mm |
| Baugröße | 32 x 10R x 3,969 - 5 | ||
| C0 (The load ratings are valid for tolerance grades T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). ) | 58.300 | N | |
| Masse | 0,87 | kg |
| C (The load ratings are valid for tolerance grades T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). ) | 38.000 | N | |
| vmax (See "characteristic speed d0 • n" (section Technical notes) and "critical speed n"cr" (section Calculation and examples) ) | 47 | m/s |
