Please state length in the “Inquiry/Order Form”

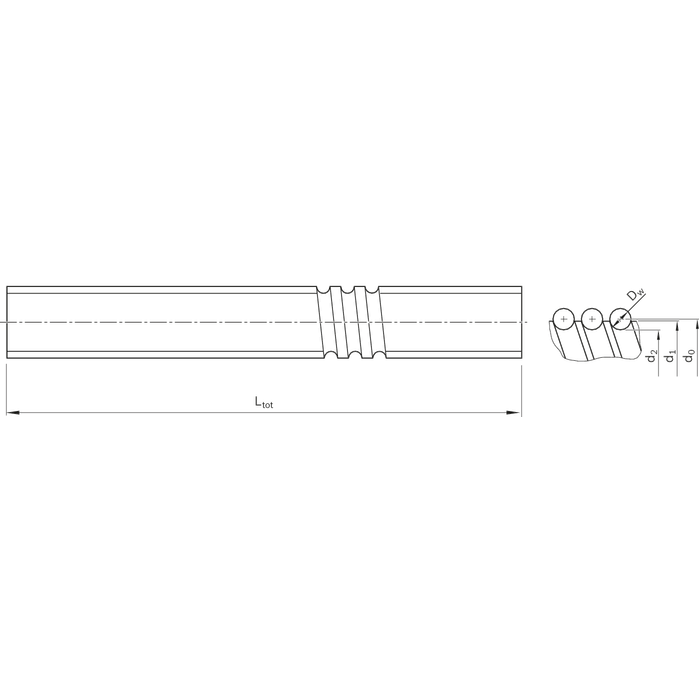

Ltot = overall length
| Baugröße | 25 x 5R x 3 | ||
| D2 | 21.9 mm | ||
| Länge auf Anfrage | 5.500 | mm | |
| Masse | 3,31 | g |
| D1 | 24 | mm | |
| Lmax | 2.500 | mm | |
| Js | 2,22 | kg•cm²/m |
| Baugröße | 25 x 5R x 3 | ||
| Zulässige Lagertemperatur (min ... max) | -15 °C ... +80 °C |
| Zulässige Betriebstemperatur (min ... max) (Ball screw assemblies are suitable for continuous operation at temperatures up to 80 °C with temporary peaks of 100 °C (measurements taken on the outer shell of the nut). ) | -10 °C ... +80 °C |
