| Durchmesser d0 | 50 mm | ||
| Statische Tragzahl C0 | 166000 N | ||
| Lagertemperatur (min. … max.) | -15 °C ... +80 °C | ||
| Hinweis maximal zulässige Geschwindigkeit vmax | See "Characteristic speed d0 • n" (section Technical notes) and "Critical speed ncr" (section Calculation and examples) | ||
| Hinweis dynamische Tragzahl C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||

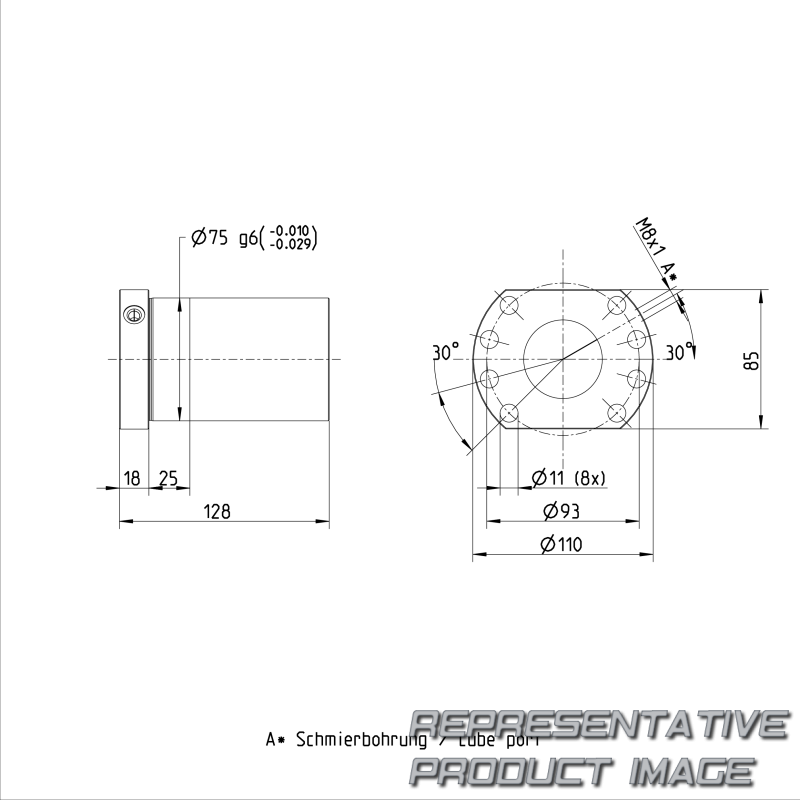

| Abmessung L4 | 25 mm | ||
| Dimension L14 | 85 mm | ||
| Abmessung D7 | 11 mm | ||
| Dimension D5 | 110 mm | ||
| Abmessung D1 g6 | 75 mm | ||
| Abmessung d1 | 48 mm | ||
| Minimale Betriebstemperatur | |||
| Lagertemperature min | |||
| Ausführung | Ball screw assembly | ||
| Fußnote zulässige Betriebstemperatur (min...max) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. | ||
| Fußnote statische Tragfähigkeit C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||
| Mutternart | FEM-E-B single nut with flange | ||
| Fußnote dynamische Tragfähigkeit C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||
| Baureihe | Standard series |
| Hinweis statische Tragzahl C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||
| Hinweis zulässige Betriebstemperatur (min. … max.) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. | ||
| Betriebstemperatur (min. … max.) | -10 °C ... +80 °C | ||
| Maximal zulässige Lineargeschwindigkeit vmax (m/min) | 48 m/min | ||
| Dimension Sx | 5 mm | ||
| Abmessung L3 | 18 mm | ||
| Dimension L10 | 110 mm | ||
| Abmessung D6 | 93 mm | ||
| Abmessung d2 | 43.8 mm | ||
| Abmessung L | 128 | ||
| Lochmuster | BB1 | ||
| Maximale Betriebstemperatur | |||
| Lagertemperature max | |||
| Kategorie | A | ||
| Masse m | 2.75 g | ||
| Statische Tragzahl C0 | 166000 N | ||
| Permissible ambient temperature for mechanical system | - 15 °C ... + 80 °C | ||
| Dynamische Tragzahl C | 95300 N | ||
| Nennweite | 50 x 16R x 6 - 6 mm |
