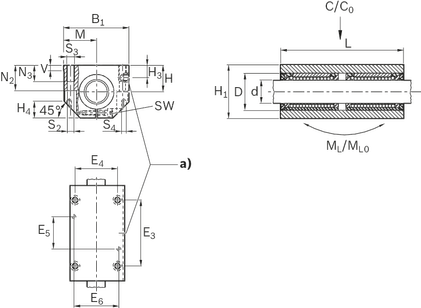

a)
Lubricating hole M8 x 1 sealed with plastic cap
| D | 19 | mm | |
| E3 | 52 mm ±0.15 | ||
| E5 | 20 | ||
| H | 16 | mm | |
| H1 | 31,50 | mm | |
| H4 | 10 | mm | |
| Maschinenschutz (Clamped (fastened) in relation to Ø d.) | 20 mm ±0.01 | ||
| N3 | 11 | mm | |
| S3 | M5 | ||
| Schalter | 2,50 |
| B1 | 40 | mm | |
| E4 | 29 mm ±0.15 | ||
| E6 | 31 | mm | |
| Toleranz für H (Clamped (fastened) in relation to Ø d.) | + 8 - 16 |
||
| H3 | 9 | mm | |
| Linie | 70 | mm | |
| N2 | 15 | mm | |
| S2 (Fixing screws ISO 4762-8.8) | 4,30 | ||
| S4 (Pin hole centering.) | 4 | mm | |
| Ventil | 5 | mm |
| amax | 150 | m/s² | |
| Maschinenschutz | 0,20 | kg | |
| Losbrechkraft | 1 | N | |
| Betriebsbedingungen | Operating conditions |
| vmax (Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 105 m to 100 • 105 m without failure. ) | 3 | m/s | |
| FR (Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. ) | 0,50 | N | |
| Radialluft | Comes clamped to h5 shaft (lower limit) and set to zero clearance | ||
| Zulässige Umgebungstemperatur (min ... max) | -10 °C ... +80 °C |
