REXROTH R067102000 SUPERKUGELBUECHSE

Name: R067102000 REXROTH
Brand: REXROTH
SKU: 29629-de-eur
Price: 42.5 EUR
Availability: InStock

KBA-O-20

42,50 € ~~48,78 €~~ -12%

50+ Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Low-cost Linear Bushing for high requirements
Steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers for outstandingly smooth travel and a long service life
Compensates for shaft deflection and misalignment up to 30'
Open Linear Bushing on fully supported shafts for applications where other linear guides tend to warp due to imprecise substructures.
High travel speed (5 m/s)

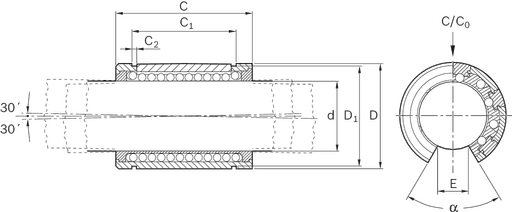

Typ (KB)	Super linear bushings Open, R0671
Baureihe (A)	Super a (with misalignment compensation)

Form (O)	Open
Wellendurchmesser (20)	20 Shaft diameter

e (Minimum size in relation to Ø d.)	9
Industriekomponente	55	mm
C₁	31,20	H13

a_max	150	m/s²
Maschinenschutz	0,05	kg
Losbrechkraft (One wiper seal: Multiply by a factor of 0.5.)	3	N
Kugelreihen	5
Radialspiel der Welle h6/Bohrung K7	+ 25 - 7
Betriebsbedingungen	Operating conditions

v_max (Speeds of up to 5 m/s possible. Service life is limited by heightened wear to plastic parts. Tests have shown total travel from 50 • 10⁵ m to 100 • 10⁵ m without failure. )	3	m/s
F_R (One wiper seal: Multiply by a factor of 0.5.,Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. )	1,50	N
Maschinenschutz (Friction coefficients of unsealed Linear Bushings when lubricated with oil. The friction coefficient is lowest under heavy load, but can still be above the specified value even under a low load. )	0,001 ... 0,0025
Radialspiel der Welle h6/Bohrung H7	+ 43 + 11
Radialspiel der Welle h6/Bohrung M7	+ 18 - 14
Zulässige Umgebungstemperatur (min ... max)	-10 °C ... +80 °C
