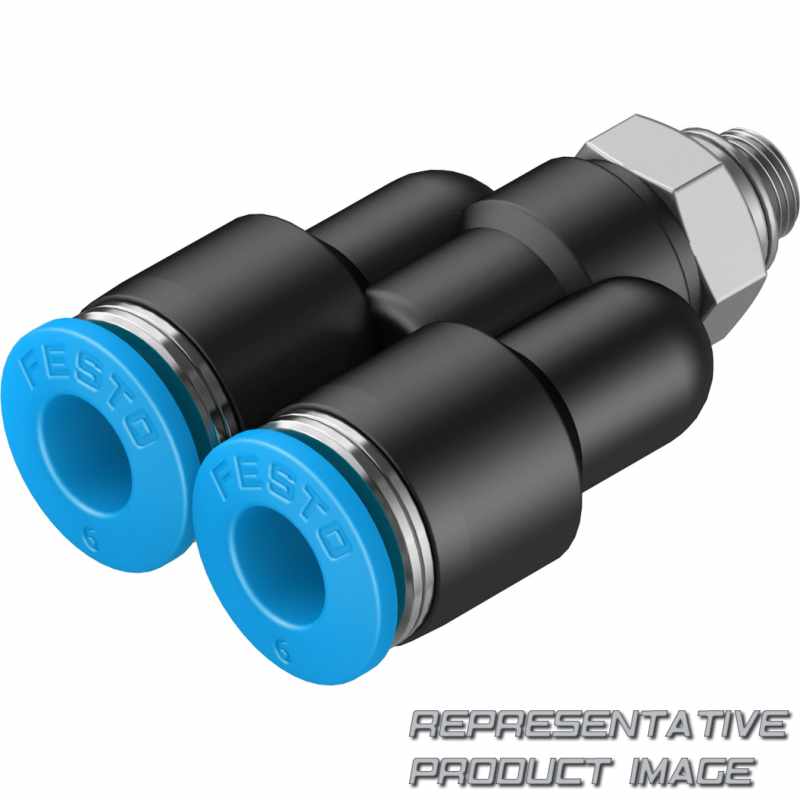

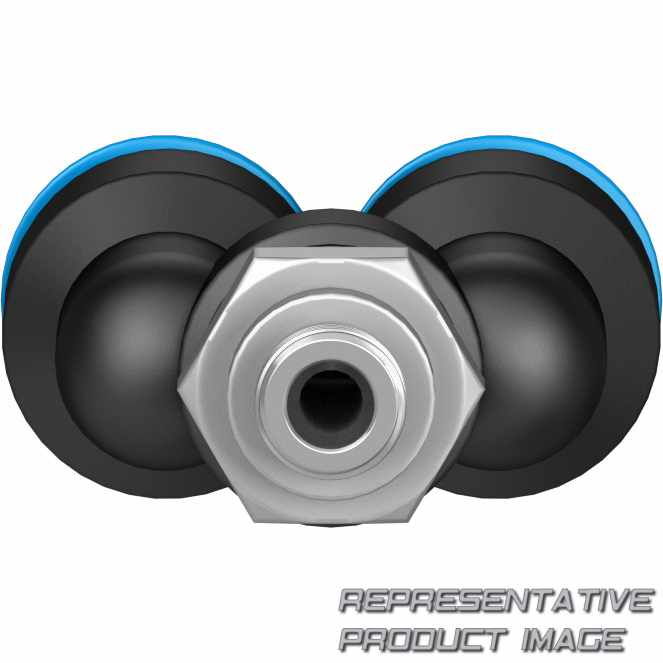

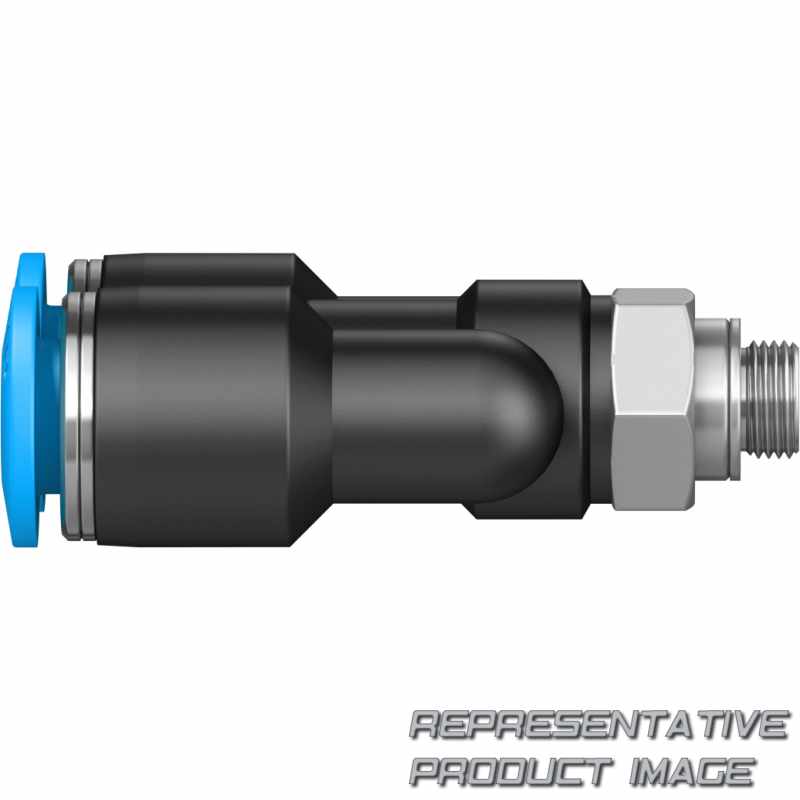

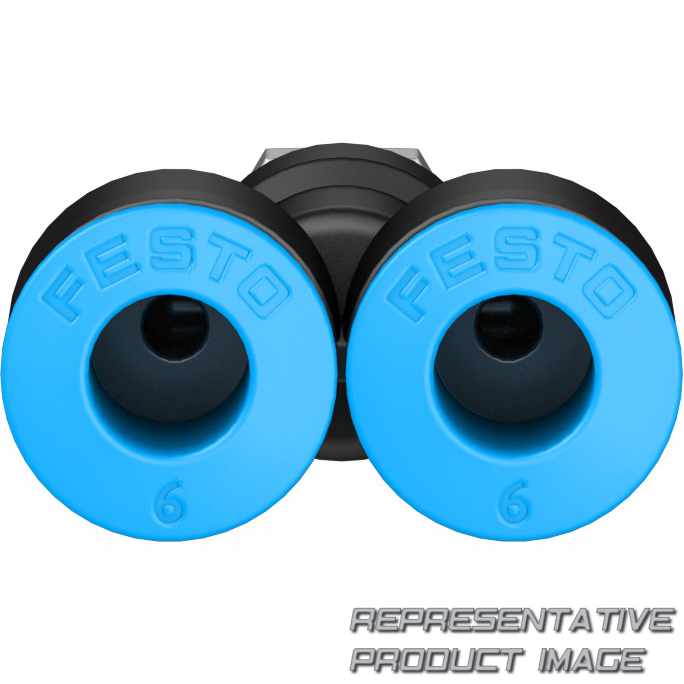

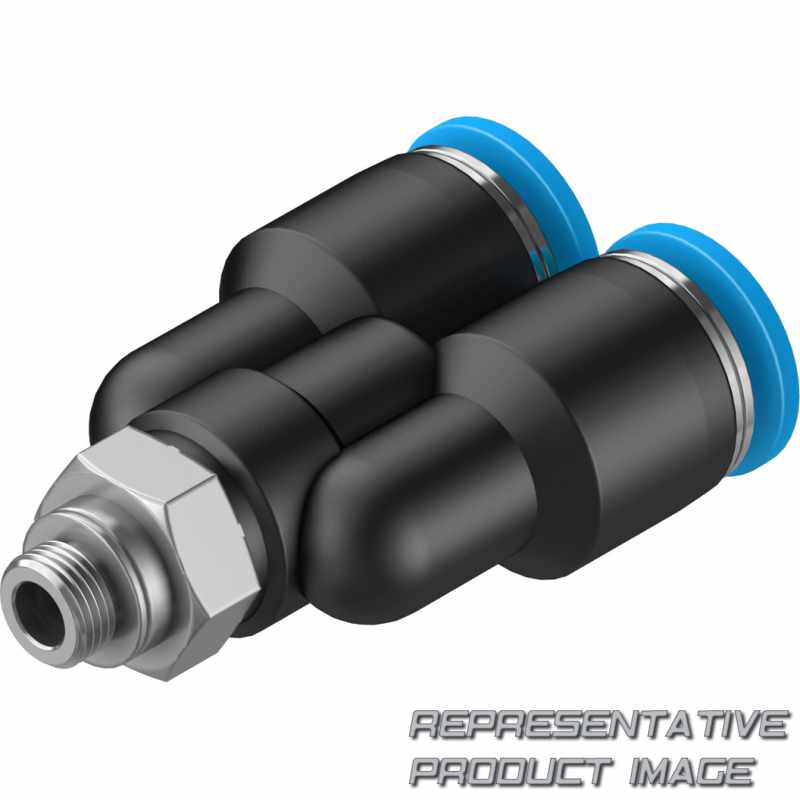

FESTO QSY
59 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO QSY – Push-in fitting, standard series. Finden Sie das passende Produkt durch Filtern mit Pneumatic connection 1, Pneumatic connection 2 und Packaging unit [units].
QSY Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| QSY | QSY- | Push-in fitting, standard series |
Typcode zur Katalognummer QSY,
QSY-
| 001 | Series |
|---|---|
| QSY | Push-in fitting, standard series |
| 002 | Design |
| Straight shape | |
| C | Blanking plug |
| L | L-shape |
| LL | L-shape, long version |
| S | Push-in bulkhead connector |
| T | T-shape |
| TL | T-shape, additional push-in connector, lengthwise |
| W | 45° elbow |
| X | X-shape |
| Y | Y-shape |
| 003 | Pneumatic connection 1 |
| 1/8 | Male thread R1/8 |
| 1/4 | Male thread R1/4 |
| 3/8 | Male thread R3/8 |
| 1/2 | Male thread R1/2 |
| 4 | Push-in connector 4 mm |
| 4H | Push-in sleeve 4 mm |
| 6 | Push-in connector 6 mm |
| 6H | Push-in sleeve 6 mm |
| 8 | Push-in connector 8 mm |
| 8H | Push-in sleeve 8 mm |
| 10 | Push-in connector 10 mm |
| 10H | Push-in sleeve 10 mm |
| 12 | Push-in connector 12 mm |
| 12H | Push-in sleeve 12 mm |
| 16 | Push-in connector mm |
| 16H | Push-in sleeve 16 mm |
| G1/8 | Male thread G1/8 |
| G1/4 | Male thread G1/4 |
| G3/8 | Male thread G3/8 |
| G1/2 | Male thread G1/2 |
| G3/4 | Male thread G 3/4 |
| M5 | Male thread M5 |
| 004 | Pneumatic connection 2 |
|---|---|
| Same size push-in connector as pneumatic connection 1 | |
| 4 | Push-in connector 4 mm |
| 6 | Push-in connector 6 mm |
| 8 | Push-in connector 8 mm |
| 10 | Push-in connector 10 mm |
| 12 | Push-in connector 12 mm |
| 16 | Push-in connector 16 mm |
| 22 | Push-in connector 22 mm |
| 005 | Mounting method |
| Standard | |
| I | Internal hexagon |
| V | Hollow bolt with external hex |
| 006 | Additional characteristic |
| None | |
| F | With fixed collar |
| Y | Outlet, 2-way, parallel |
| 007 | Packaging unit [units] |
| None | |
| 1 | 1 |
| 10 | 10 |
| 20 | 20 |
| 50 | 50 |
| 100 | 100 |
