FESTO QSMLL
17 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO QSMLL – Push-in fitting, mini series. Finden Sie das passende Produkt durch Filtern mit Pneumatic connection 1, Pneumatic connection 2 und Packaging unit [units].
QSMLL Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| QSMLL | QSMLL- | Push-in fitting, mini series |
Typcode zur Katalognummer QSMLL,
QSMLL-
| 001 | Series |
|---|---|
| QSMLL | Push-in fitting, mini series |
| 002 | Design |
| Straight shape | |
| C | Blanking plug |
| L | L-shape |

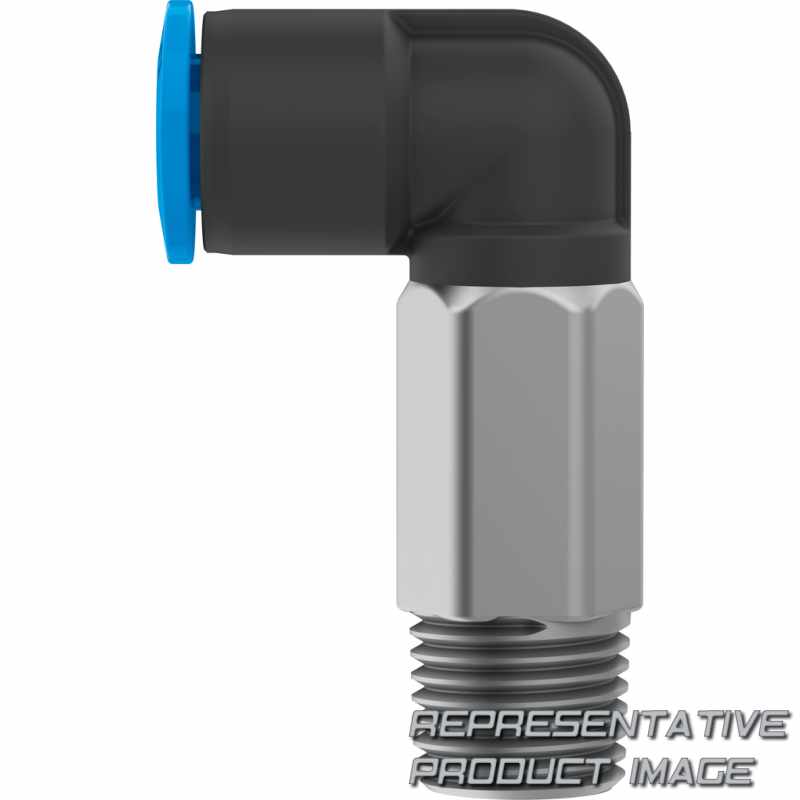

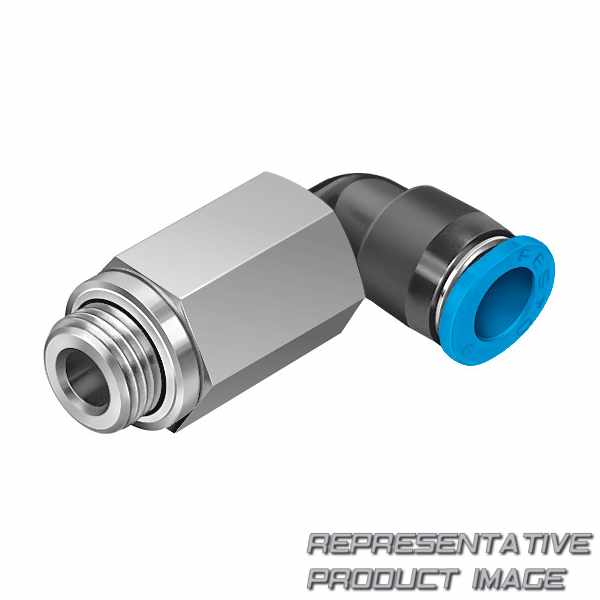

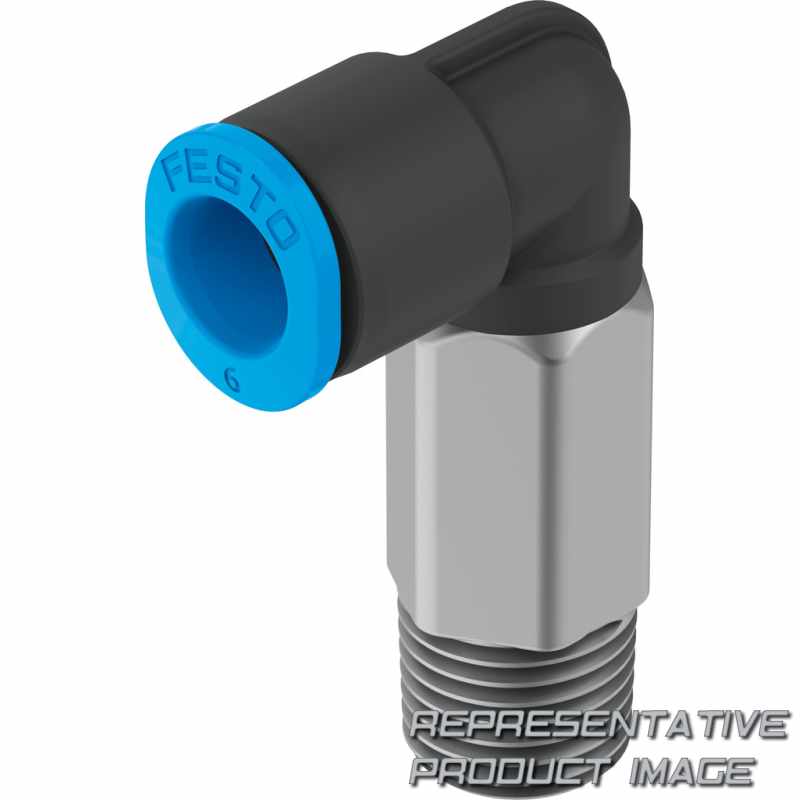

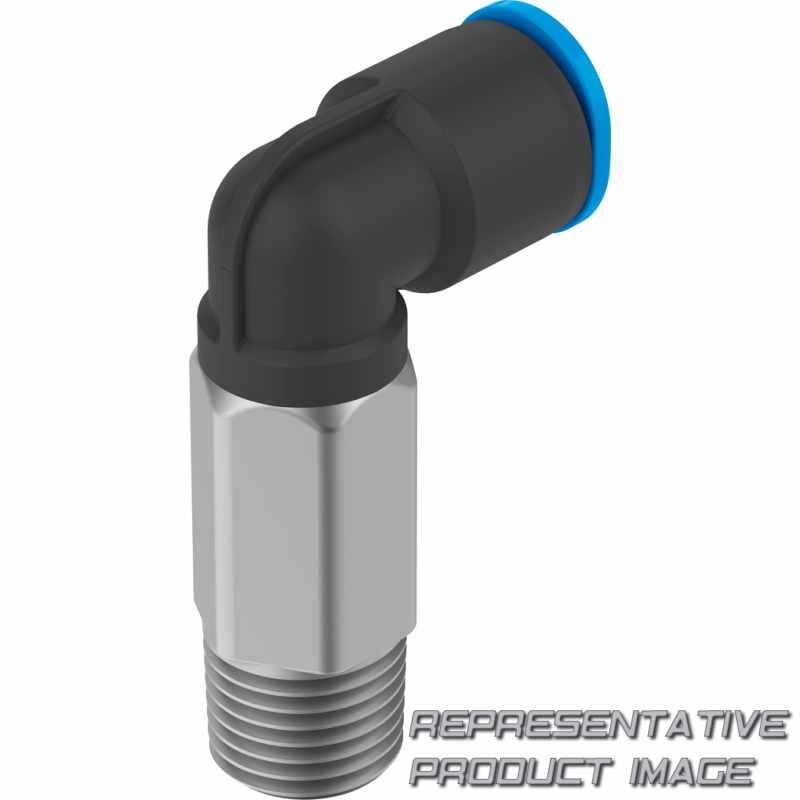

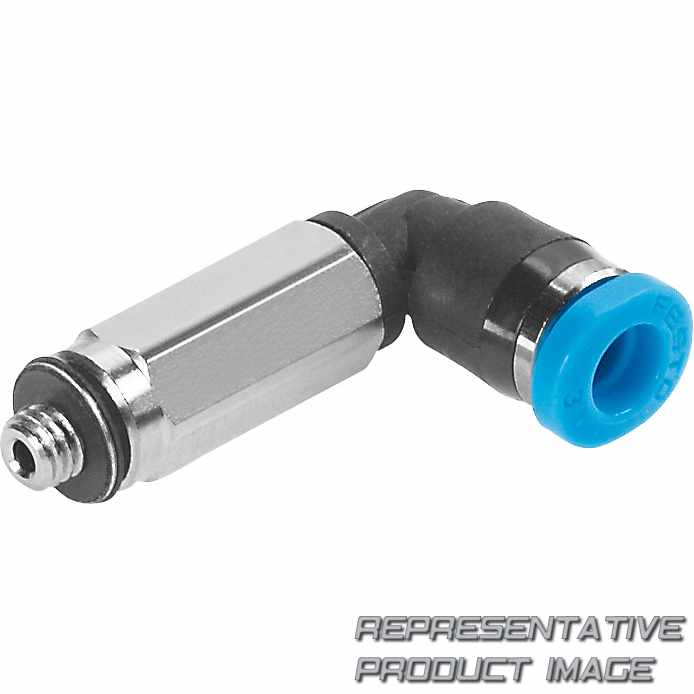

| LL | L-shape, long version |
| S | Push-in bulkhead connector |
| T | T-shape |
| TL | T-shape, additional push-in connector, lengthwise |
| W | 45° elbow |
| X | X-shape |
| Y | Y-shape |
| 003 | Pneumatic connection 1 |
| 1/4 | Male thread R1/4 |
| 1/8 | Male thread R1/8 |
| 2 | Push-in connector 2 mm |
| 2H | Push-in sleeve 2 mm |
| 3 | Push-in connector 3 mm |
| 3H | Push-in sleeve 3 mm |
| 4 | Push-in connector 4 mm |
| 4H | Push-in sleeve 4 mm |
| 6 | Push-in connector 6 mm |
| 6H | Push-in sleeve 6 mm |
| G1/4 | Male thread G1/4 |
| G1/8 | Male thread G1/8 |
| M3 | Male thread M3 |
| M5 | Male thread M5 |
| M6 | Male thread M6 |
| M6x0.75 | Male thread M6x0.75 |
| M7 | Male thread M7 |
| M8x0.75 | Male thread M8x0.75 |
| M8x1.25 | Male thread M8x1.25 |
| 004 | Pneumatic connection 2 |
|---|---|
| Same size push-in connector as pneumatic connection 1 | |
| 2 | Push-in connector 2 mm |
| 3 | Push-in connector 3 mm |
| 4 | Push-in connector 4 mm |
| 6 | Push-in connector 6 mm |
| 005 | Mounting method |
| Standard | |
| I | Internal hexagon |
| 006 | Additional characteristic |
| None | |
| R | Round releasing ring |
| 007 | Packaging unit [units] |
| None | |
| 10 | 10 |
| 100 | 100 |
