| Brand | SNR | ||
| α - Contact angle | 35 ° | ||
| C - Dynamic load | 53,3 kN | ||
| Cu - Fatigue limit load | 1,75 kN | ||
| Tmin - Min operating temperature | -40 °C | ||
| BPFO - Characteristic outer ring frequency | 3,488 Hz | ||
| FTF - Characteristic cage frequency | 0,387 Hz | ||

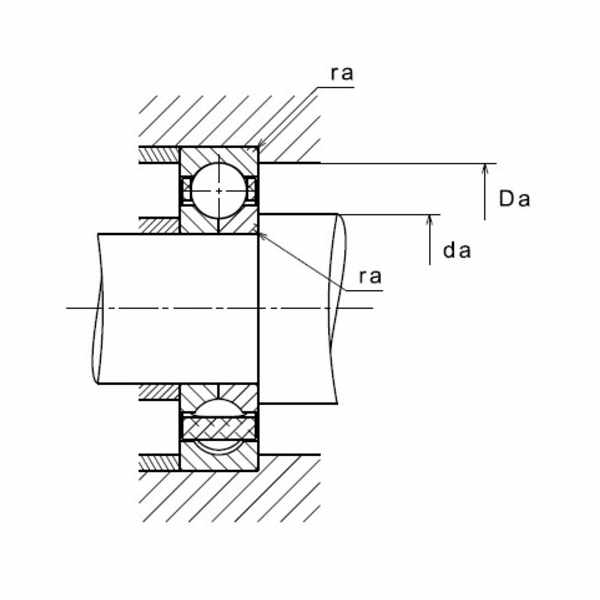

| ra max - Max shaft & housing fillet radius | 1,1 mm | ||
| Da min - Min shoulder diameter OR | 58 mm |

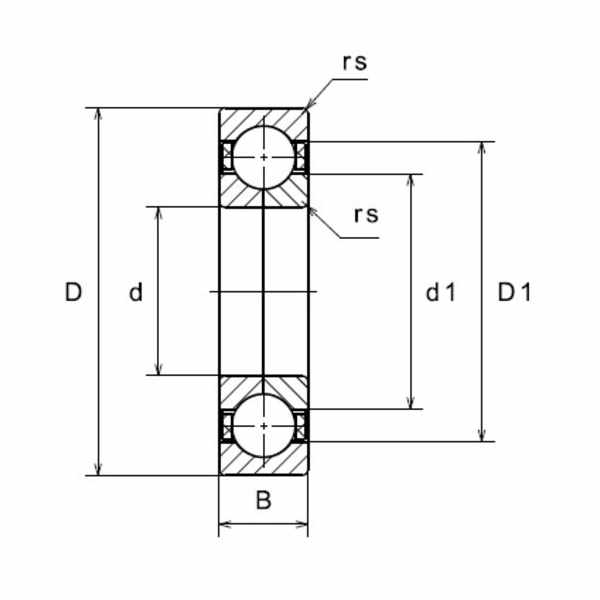

| r1s - Min fillet radius | 1,1 mm | ||
| Cage Material | Brass | ||
| C0 - Static load | 38,6 kN | ||
| Nref - Reference thermal speed | 7800 tr/min | ||
| Tmax - Max operating temperature | 120 °C | ||
| BPFI - Characteristic inner ring frequency | 5,511 Hz | ||
| BSF - Characteristic rolling element frequency | 3,458 Hz | ||
| Da max - Max shoulder diameter OR | 65,5 mm |
