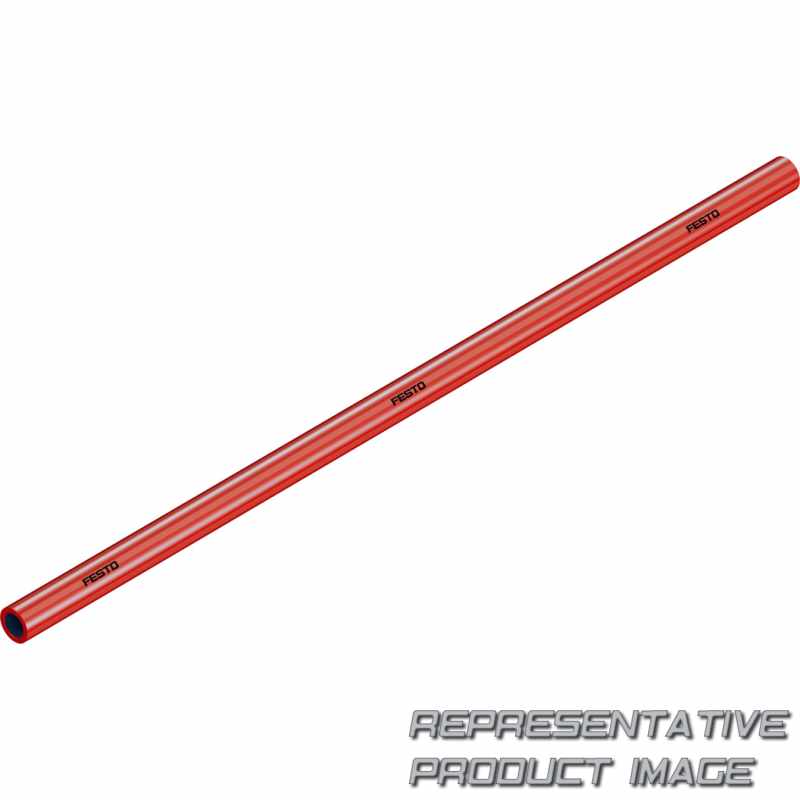

FESTO 558287 Kunststoffschlauch

Name: 558287 FESTO
Brand: FESTO
SKU: 681238-de-eur
Price: 1.44 EUR
Availability: InStock

PUN-H-8X1,25-RT

1,44 € /m ~~1,83 €~~ /m -21%

50 m mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Baureihe (PUN)	Plastic tubing, polyurethane
Alternative material characteristic (H)	Hydrolysis-resistant
Pipe/tubing O.D. x wall thickness (8x1.25)	8x1.25 mm

Material tubing		TPE-U(PU)
Shore-Härte		D 52 +/-3
Pneumatischer Anschluss		For push-in connector O.D. 8 mm For barbed fitting inside diameter of 6 mm with union nut
Umgebungstemperatur		-35 °C ... 60 °C
Reinraumklasse		Element installed statically, no meaningful evaluation possible according to ISO 14644-1
LABS-Konformität		VDMA24364-B2-L
Betriebsmedium		Compressed air to ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
Zulassung		German Technical Control Board (TÜV)
Tubing characteristics		Suitable for energy chains
Innen-Ø		5,7 mm
Außen-Ø		8 mm

Werkstoff-Hinweis		RoHS-compliant
Farbe		Red
Product weight according to length		0,029 kg/m
Lebensmitteltauglichkeit		See supplementary material information
Eignung zur Produktion von Li-Ionen Batterien		Metals with more than 1% copper, zinc or nickel by mass are excluded from use. Exceptions are nickel in steel, chemically nickel-plated surfaces, printed circuit boards, cables, electrical plug connectors and coils
Fire test material		UL94 HB
Zertifikat ausstellende Stelle		B 013277 0506 00
Temperaturabhängiger Betriebsdruck		-13,775 psi ... 145 psi
Min. bending radius		21 mm
Flow-relevant bending radius		37 mm
