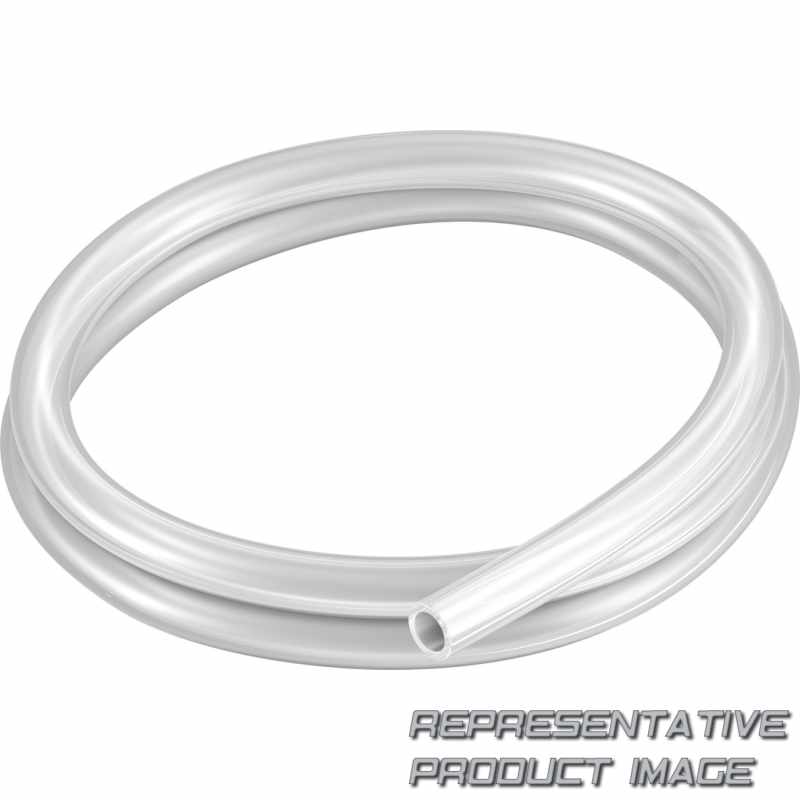

FESTO 197062 Kunststoffschlauch

Name: 197062 FESTO
Brand: FESTO
SKU: 682937-de-eur
Price: 26.47 EUR
Availability: InStock

PFAN-6X1-NT

26,47 € /m

50 m mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Baureihe (PFAN)	Plastic tubing
Pipe/tubing O.D. x wall thickness (6x1)	6x1 mm

Colour (NT)	Natural

Material tubing		PFA
Shore-Härte		D 60 +5
Pneumatischer Anschluss		For push-in connector O.D. 6 mm For barbed fitting I.D. 4 mm with union nut For barbed fitting I.D. 4 mm
Umgebungstemperatur		-20 °C ... 150 °C
Lebensmitteltauglichkeit		See supplementary material information See declaration of conformity
Betriebsmedium		Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free) Water vapour
Note on operating pressure		Water: 0 – 0.6 MPa, 0 – 6 bar, 0 – 87 psi Water vapour: 0 – 0.15 MPa, 0 – 1.5 bar, 0 – 22 psi
Min. bending radius		12 mm
Flow-relevant bending radius		50 mm

Werkstoff-Hinweis		RoHS-compliant
Farbe		Natural
Product weight according to length		0,034 kg/m
Note on temperature of medium		Water: 0 - 85 °C Water vapour: max. 120 °C
Fire test material		UL94 V-0
Zulassung		German Technical Control Board (TÜV)
Temperaturabhängiger Betriebsdruck		-0,95 bar ... 16 bar
Innen-Ø		4 mm
Außen-Ø		6 mm
