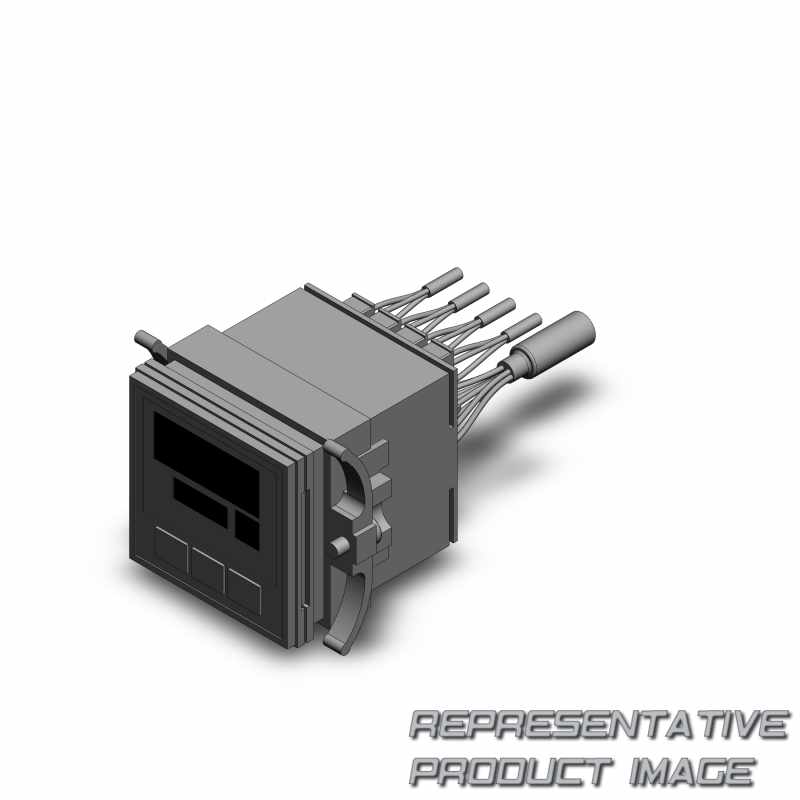

SMC PF2A200-MA4C

Name: PF2A200-MA4C SMC
Brand: SMC
SKU: 824070-de-eur
Price: 350.66 EUR
Availability: InStock

350,66 € ~~420,39 €~~ -16%

verfügbar mit 3 bis 7 Tagen Lieferzeit nach United States

Technische Daten

Versorgungsspannung	24 vdc (ripple ?10% or less) (with power supply polarity protection)

Gewicht	60Kg

Gewicht		.46297 lb
Anschluss		power supply / output connection: 8p connector, sensor connection: 4p connector (e-con)
status led?s		illuminates when output is on out1: red
temperature characteristics		?2% f.s. or less (0 to 50c, based on 25c)
linearity note 5)		?5% f.s. or less
Hysterese		hysteresis mode: variable (can be set from 0), window comparator mode: fixed (3-digits)
sensor input		1 to 5 vdc (input impedance: approx. 800k )
power supply voltage for sensor		same as [power supply voltage]
Versorgungsspannung		24 vdc (ripple ?10% or less) (with power supply polarity protection)
note 1, 2)display units		accumulated flow
minimum set unit note 1)		0.1 l/min
flow rate measurement range note 1)		0.5 to 10.5 l/min
Baureihe		pf2a200/201

Material		housing: pbt, display: pet, backside rubber: cr
resistance		noise resistance
display method		for measured value display: 4-digits, 7-segment led (orange) for channel display: 1-digit, 7-segment led (red)
repeatability note 5)		?3% f.s. or less
response time note 5)		1s or less
output note 4)specifications		output protection
power supply current for sensor note 3)		max. 110 ma (however, the total current for the 4 inputs is 440 ma maximum or less.)
Stromaufnahme		55 ma or less (not including the current consumption of the sensor)
accumulated flow range note 1)		0 to 999999 l, 0 to 999999 ft3 x 10-2
accumulated pulse flow rate exchange value (pulse width: 50 ms) note 1)		0.1 l/pulse
set flow rate range note 1)		0.5 to 10.5 l/min
applicable flow rate sensor		pf2a510- -1
