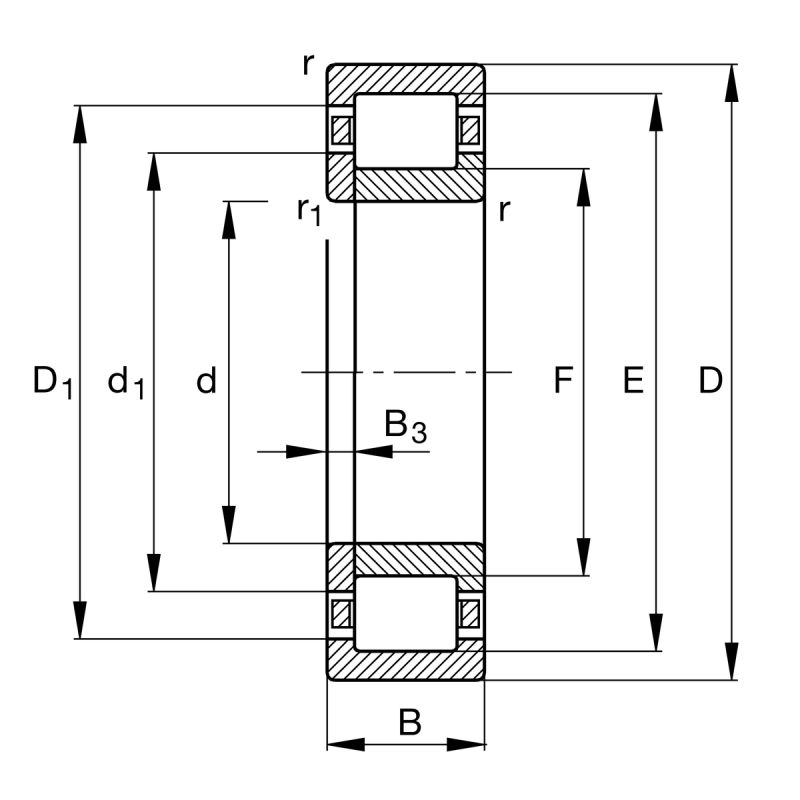

| Bore diameter | d | 85 | mm |
| Breite | B | 36 | mm |
| Basic static load rating, radial | C0r | 275,000 | |
| Limiting speed | nG | 6,400 |
| Außen-Ø | D | 150 | mm |
| Basic dynamic load rating, radial | Cr | 255,000 | |
| Fatigue load limit, radial | Cur | 49,500 | |
| Reference speed | nϑr | 3,300 |

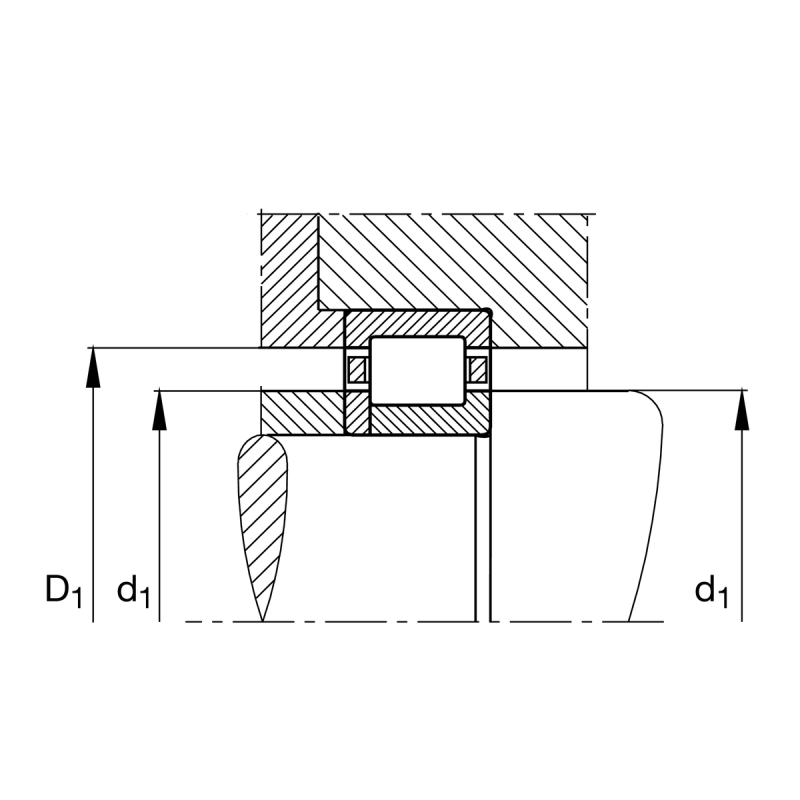

| Maximum rib diameter inner ring | d1 | 107,50 | mm |
| Minimum diameter shaft shoulder | da min | 96 | mm |

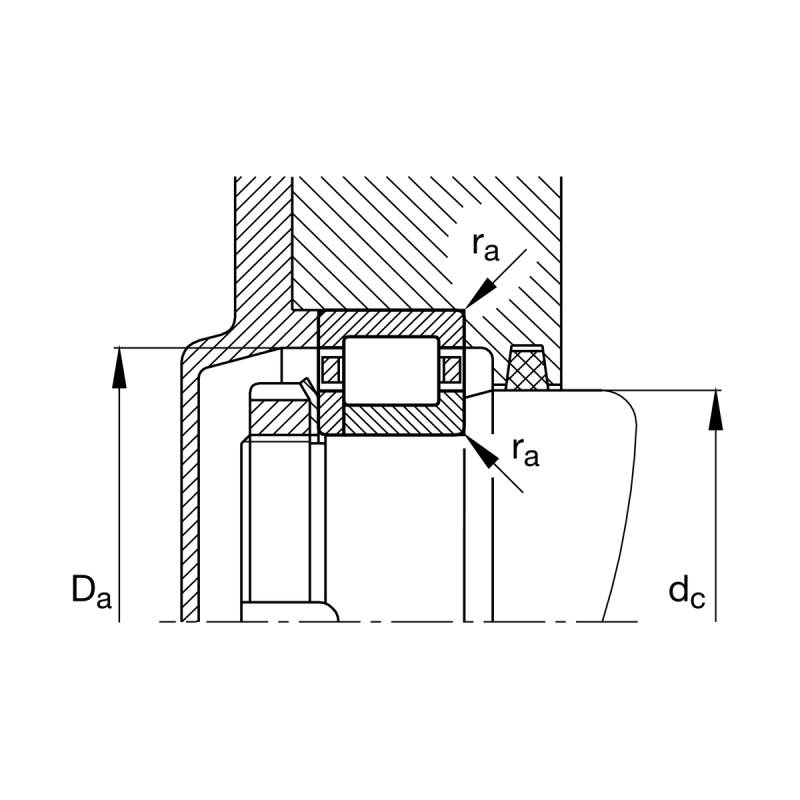

| Maximum diameter of housing shoulder | Da max | 139 | mm |
| Minimum rib diameter outer ring | D1 min | 131,50 | mm |
| Minimum shaft shoulder | dc min | 110 | mm |
| Maximum recess radius | ra max | 2 | mm |
| Minimum chamfer dimension | rmin | 2 | mm |
| Raceway diameter inner ring | F | 100,50 | mm |
| Raceway diameter outer ring | E | 136,50 | mm |
| Width of loose rib | B3 | 5 | mm |
