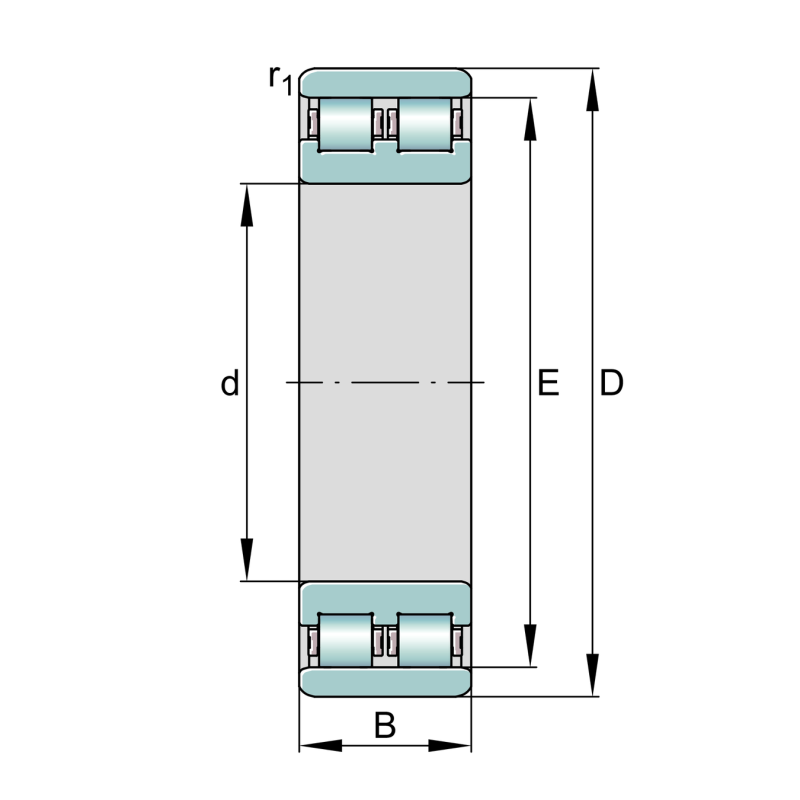

| Bore diameter | d | 50 | mm |
| Breite | B | 23 | mm |
| Basic static load rating, radial | C0r | 73,000 | |
| Limiting speed for grease lubrication | nG Grease | 13,500 |
| Außen-Ø | D | 80 | mm |
| Basic dynamic load rating, radial | Cr | 63,000 | |
| Fatigue load limit, radial | Cur | 11,300 | |
| Limiting speed for oil lubrication | nG Oil | 15,900 |

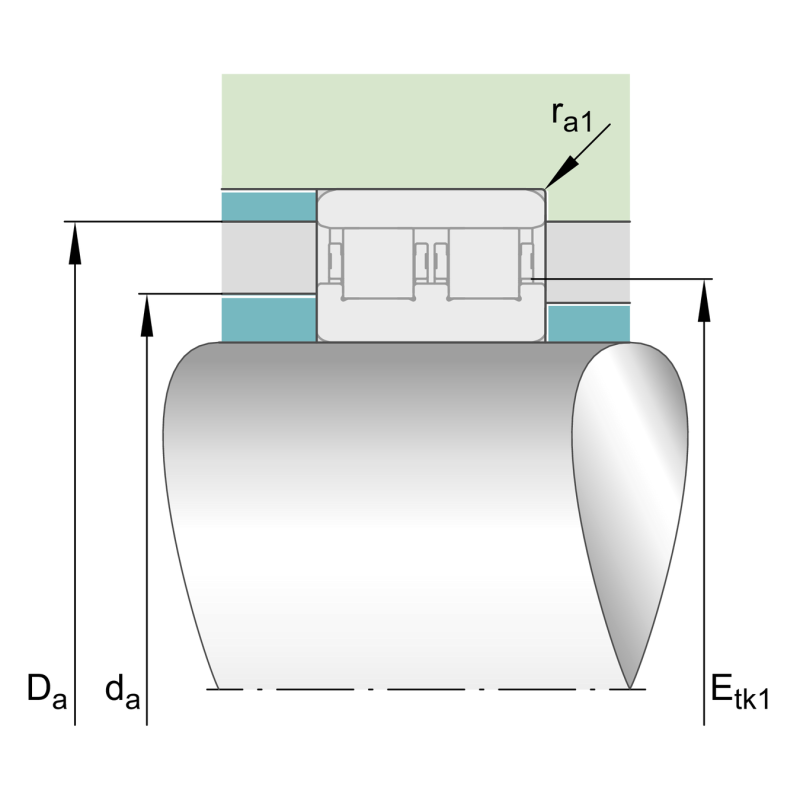

| Diameter shaft shoulder | da | 58,50 | mm |
| diameter of housing shoulder | Da | 74,20 | mm |
| Maximum recess radius | ra max | 1 | mm |
| diameter shaft shoulder tolerance | h12 | ||
| diameter of housing shoulder tolerance | H12 |
| Minimum chamfer dimension | rmin | 1 | mm |

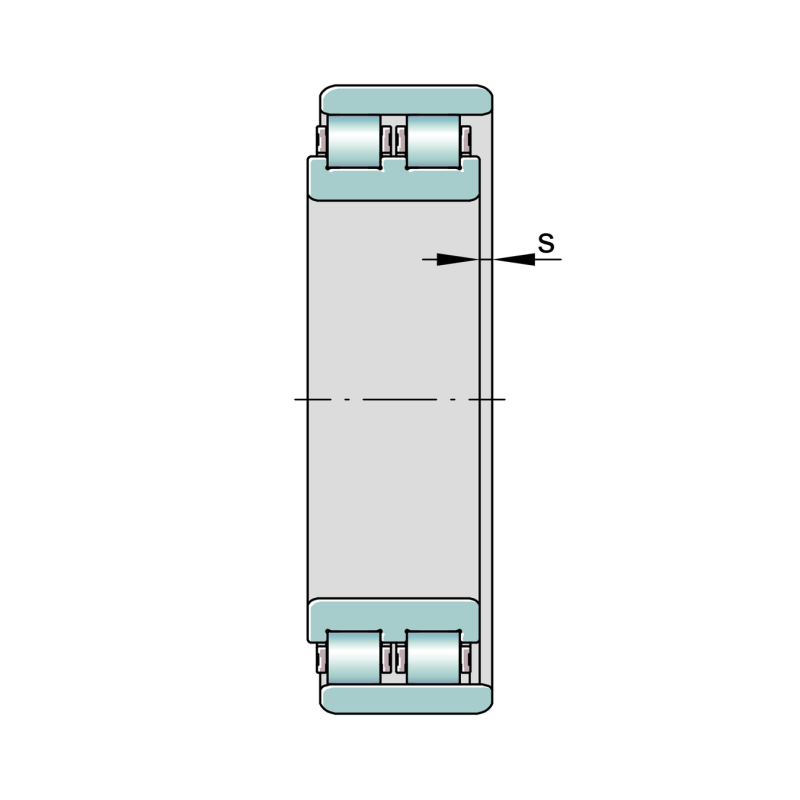

| Axial displacement | s1 | 1,70 | mm |
| Raceway diameter outer ring | E | 72,50 | mm |
