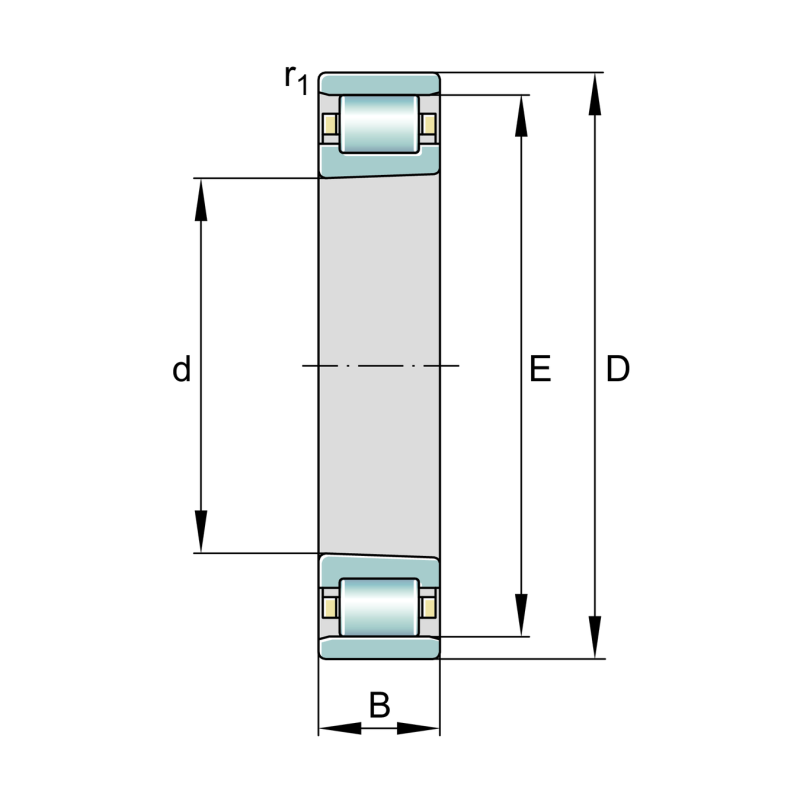

| Bore diameter | d | 55 | mm |
| Breite | B | 18 | mm |
| Basic static load rating, radial | C0r | 48,500 | |
| Limiting speed for grease lubrication | nG Grease | 12,600 |
| Außen-Ø | D | 90 | mm |
| Basic dynamic load rating, radial | Cr | 48,000 | |
| Fatigue load limit, radial | Cur | 7,900 | |
| Limiting speed for oil lubrication | nG Oil | 14,800 |

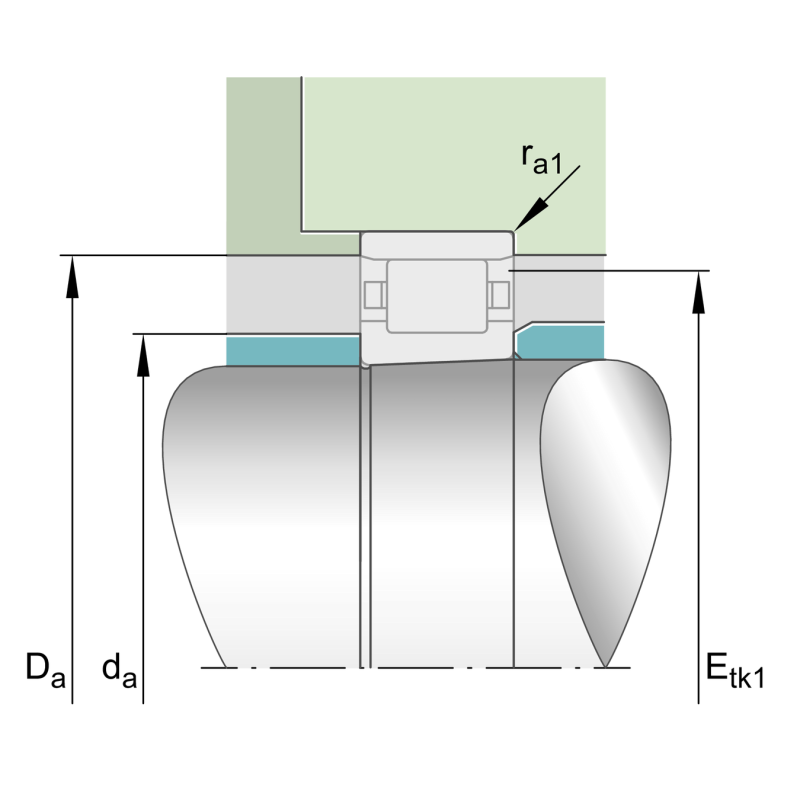

| Diameter shaft shoulder | da | 65 | mm |
| diameter of housing shoulder | Da | 82,20 | mm |
| Injection pitch diameter min | Etk 1 nom | 79,30 | mm |
| diameter shaft shoulder tolerance | h12 | ||
| diameter of housing shoulder tolerance | H12 | ||
| Maximum recess radius | ra max | 1 | mm |
| Minimum chamfer dimension | rmin | 1 | mm |
| Raceway diameter outer ring | E | 81 | mm |

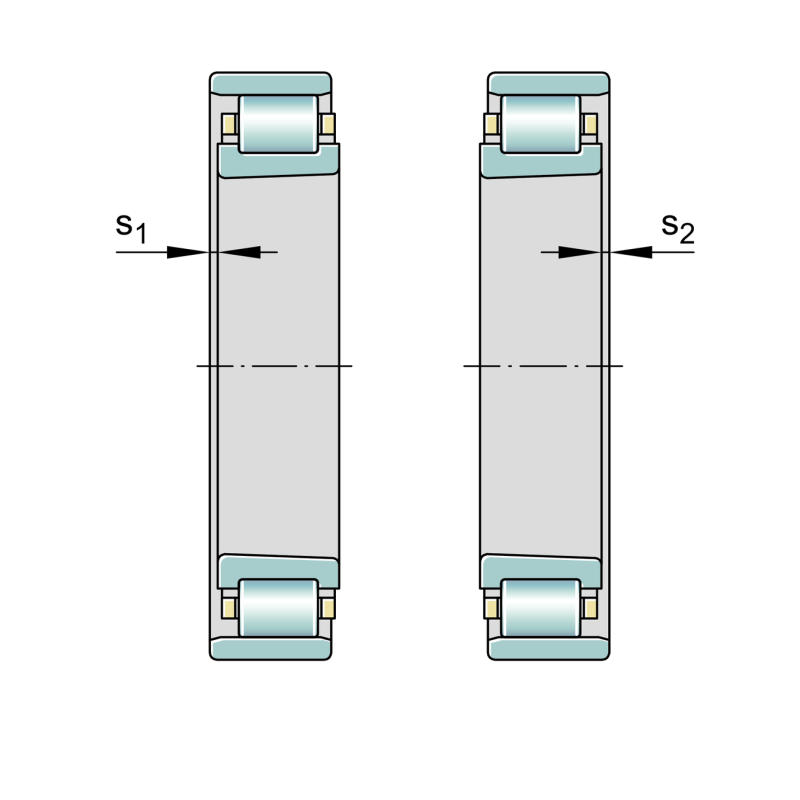

| Axial displacement | s1 | 3,40 | mm |
