| applicable size | mxq20 (l) | ||
| stroke adjustment range (mm) | 35 | ||
| body mounting section - b | 46 | ||
| body mounting section - d | 17,50 | ||
| body mounting section - e1 | 11 | ||
| body mounting section - g | 12 | ||
| body mounting section - p *1) | m6 x 18 | ||
| table mounting section - j | 17 | ||
| table mounting section - l | 25 | ||
| Gewicht | .36740 lb |

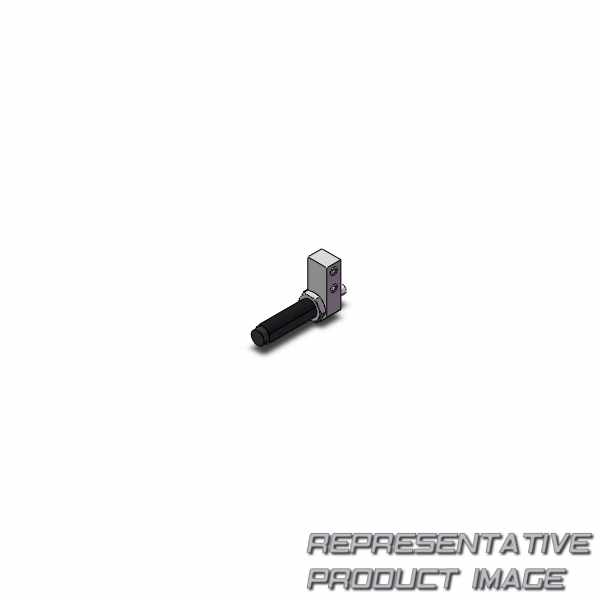

| Baureihe | mxq-bs20 (l) | ||
| body mounting section - a | 13 | ||
| body mounting section - c | 22 | ||
| body mounting section - e | 67,30 | ||
| body mounting section - f | 19 | ||
| body mounting section - m | m14 x 1.5 | ||
| table mounting section - h | 27 | ||
| table mounting section - k | 22 | ||
| table mounting section - q ?1) | m6 x 20 |
