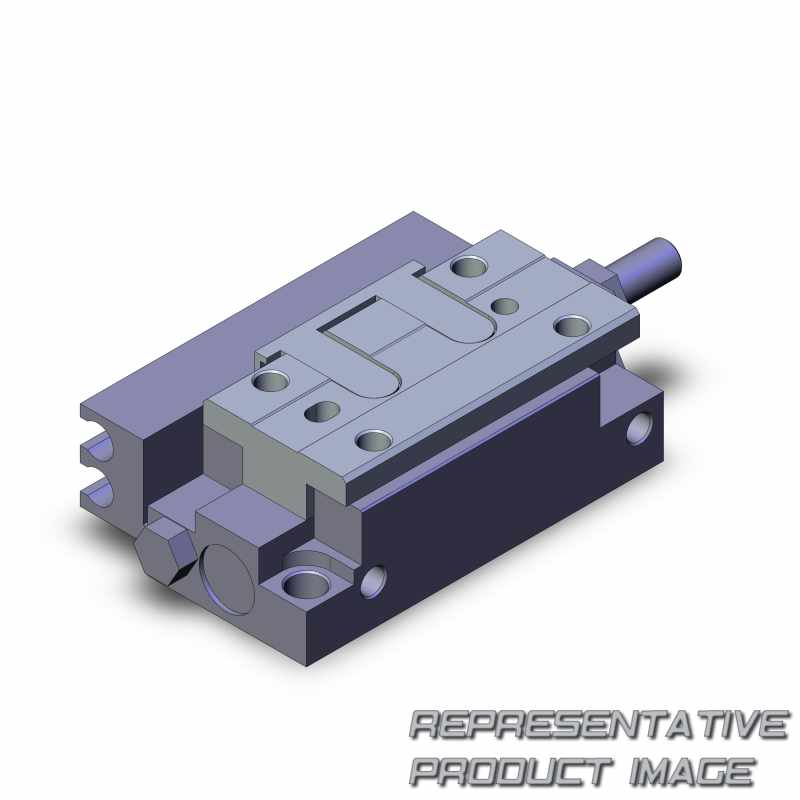

| Baureihe | mxp6 | ||
| piping port size | m3 x 0.5 | ||
| action | double acting | ||
| proof pressure | 1.05 mpa | ||
| piston speed | 50 to 500 mm/s(adjuster option/metal stopper: 50 to 200 mm/s) | ||
| Schmierung | non-lube | ||
| stroke adjustment range | metal stopper | ||
| stroke length tolerance | +10 mm |
| bore size (mm) | 6 | ||
| fluid | air | ||
| Betriebsdruck | 0.15 to 0.7 mpa | ||
| ambient and fluid temperature | ?10 to 60c | ||
| cushion | rubber bumpershock absorber (option is not available for series mxp6 and mxp8)none (adjuster option/metal stopper) | ||
| stroke adjuster | standard equipment (adjustable on one side only, for the mxp6) | ||
| auto switch | reed auto switch (2-wire, 3-wire) solid state auto switch (2-wire, 3-wire)2-color indication solid state auto switch (2-wire, 3-wire) | ||
| Gewicht | .25661 lb |
